To test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.
Standards
AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, ERT 160-0, ISO 9073-16, JIS 1092 B-b, ASTM D751, EN 343, GB/T 4744, IST 080.4(01), IST 080.6(01), WSP 080.6.R4(12), FZ/T01004, DIN 53886, ISO 1420
Features
• Color touch screen control panel, Built-in English and Chinese menu for ease operation.
• Adding pressure rate adjustable, 1-100 KPa/min
• Adopt improt high precision pressure sensor, automatic overload protection, pressure control
• Adopt dynamic feedback adjustment to avoid over laod.
• Seven test units can be selected: Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.
• Auto stop machine and record test value once sample burst during testing.
• Working modes: Supercharge method, Constant pressure and time, Constant pressure and timing, Leaking method, flexing test.
• Test data can be saved 30*20 times, equipped with micro-printer to print out data directly.
• LED lighting of sample area

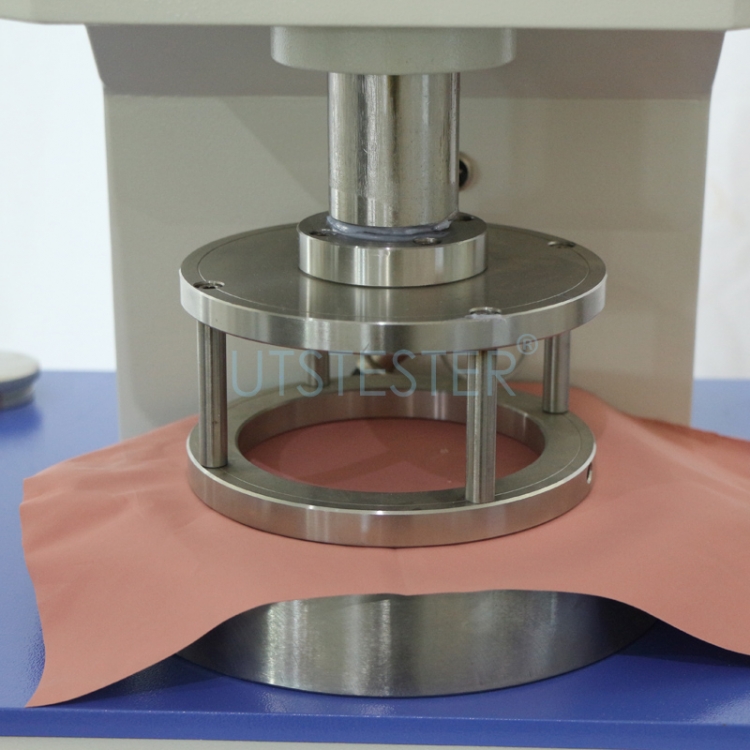

• 100 cm² test head included
• Quick Test feature saves technician time
Key Parameters
Model
|
M023C-1
|
M023C-2
|
Testing range
|
500pa-200kpa
|
5kpa-500kpa
|
Sample test area
|
100cm2
|
7.8cm2(Optional)
|
Water pressure rising rate
|
1kpa -30kpa/min
|
1kpa-100kpa/min
|
Accuracy
|
0.2%F.S
|
Test mode
|
Supercharge method
Leaking method
|
Testing unit
|
Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.
|
Power supply
|
AC 220V 50/60HZ 100W
|
Dimension
|
550 x 400 x 500mm (L x W x H)
|
Weight
|
50 kg
|

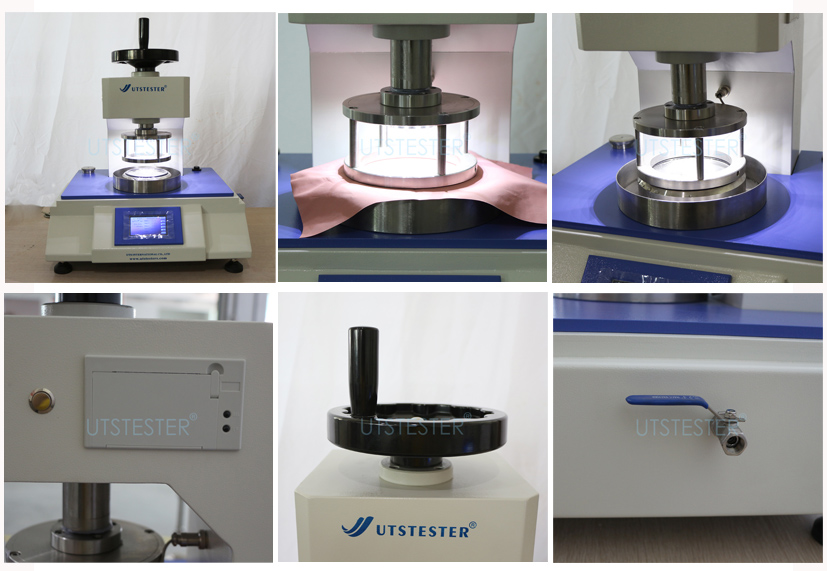

Demonstration
Materials To Be Tested
