1. Scope of Application

Applicable for testing the shrinkage temperature of leather.

2. Compliance Standards

Complies with ISO 3380, IULTCS/IUP 16, QB/T 2713-2005, and other standards.

3. Technical Parameters

3.1 Temperature Control Range: Ambient to 100°C, with tensile displacement distance 0-110mm;

3.2 Heating Rate: 2±0.2°C/min

3.3 Heating Medium: Distilled water or deionized water

3.4 Test Load: 0-3g

3.5 Instrument Dimensions: 630x330x450mm (L x W x H)

3.6. Instrument Weight: 17kg

3.7. Power Supply: Single-phase 220V, 50Hz

3.8. Control System: PLC

3.9. Operating Interface: 7-inch color touchscreen with Chinese/English language switching

3.10. Touchscreen displays test data curves and real-time temperature readings

4. Composition

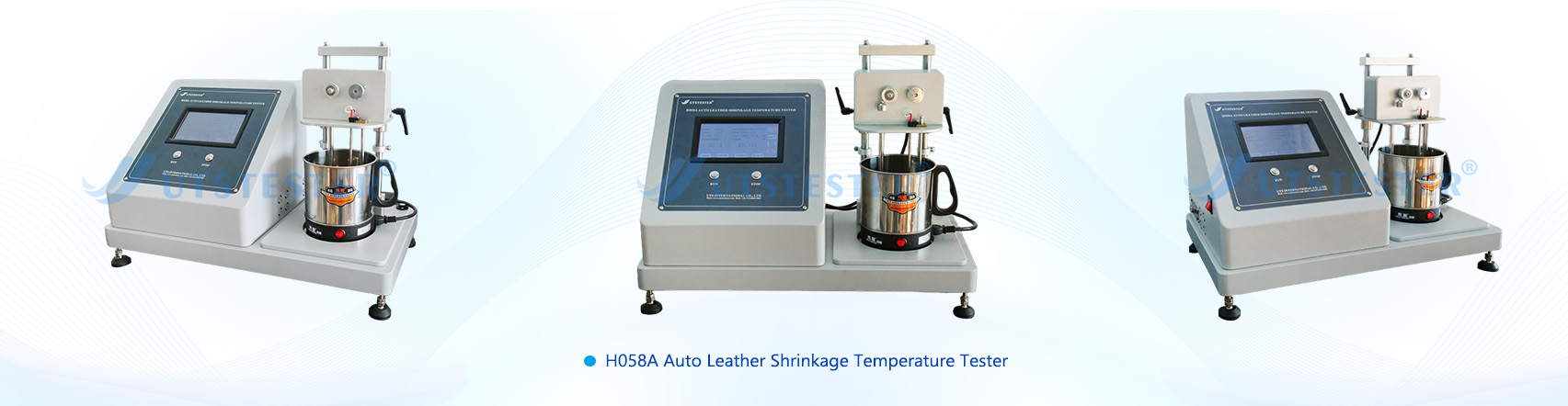

The leather shrinkage temperature tester is a device used to measure the temperature at which leather shrinks during heating. This tester typically consists of a heating unit and a measurement system.

During the leather shrinkage temperature test, the sample is usually a small leather patch or fabric. The sample is placed in the heating device and heated to a specific temperature. As the temperature rises, the leather begins to shrink until it reaches the shrinkage temperature. The measuring system records and displays the leather's shrinkage temperature.

5. Applications

The leather shrinkage temperature tester is primarily used in the following areas:

5.1 Quality Control: Shrinkage temperature is a key indicator for assessing leather quality. By conducting shrinkage temperature tests, the leather's shrinkage performance can be evaluated to determine compliance with quality standards.

5.2 Material Research and Development: Testing the shrinkage temperatures of different materials helps R&D personnel understand the shrinkage characteristics of various leather types during heating, providing reference for new material development and improvement.

5.3 Production Process Optimization: Testing leather shrinkage temperatures under different heating conditions enables optimization of production processes, enhancing production efficiency and product quality.

5.4 Market Competitive Analysis: Understanding competitors' product shrinkage temperatures aids in formulating competitive strategies and market positioning.
