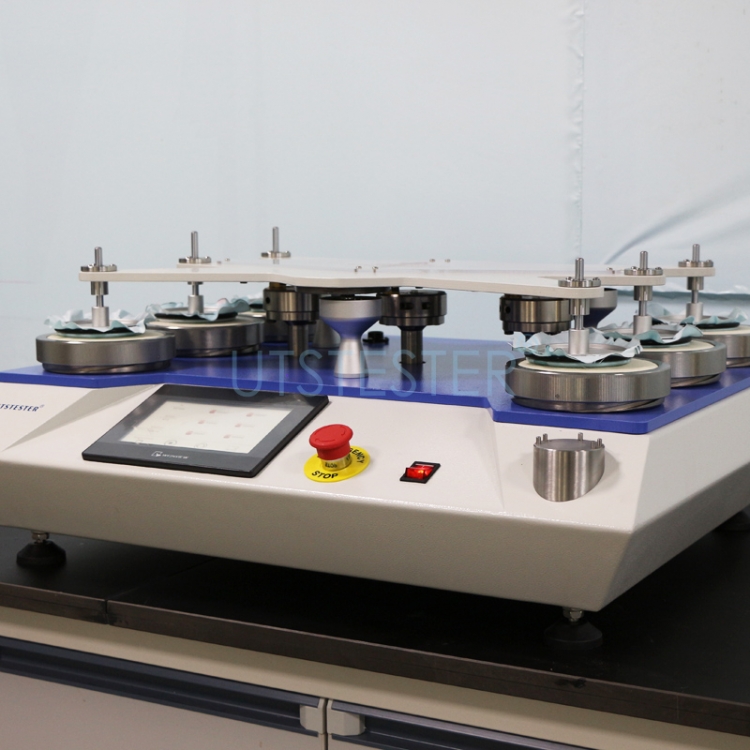

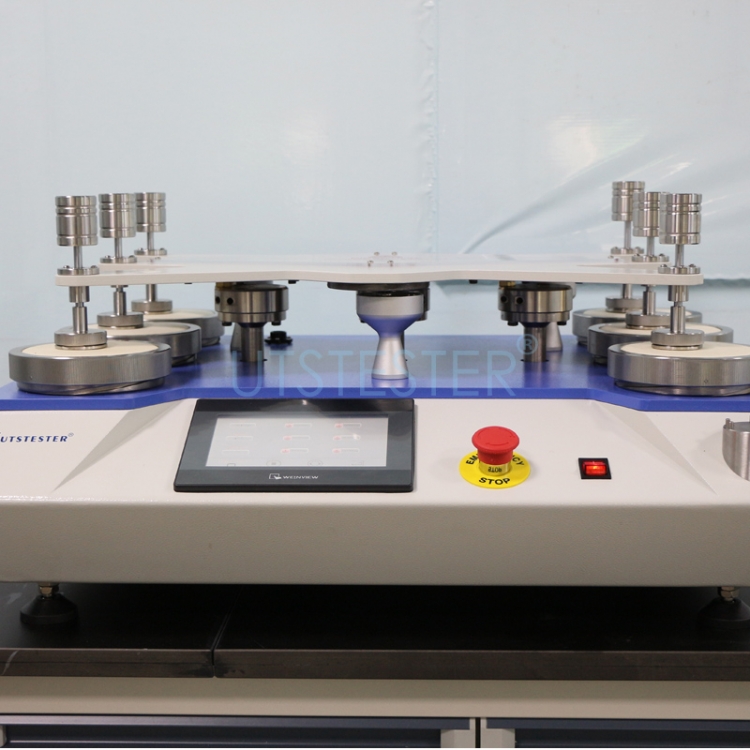

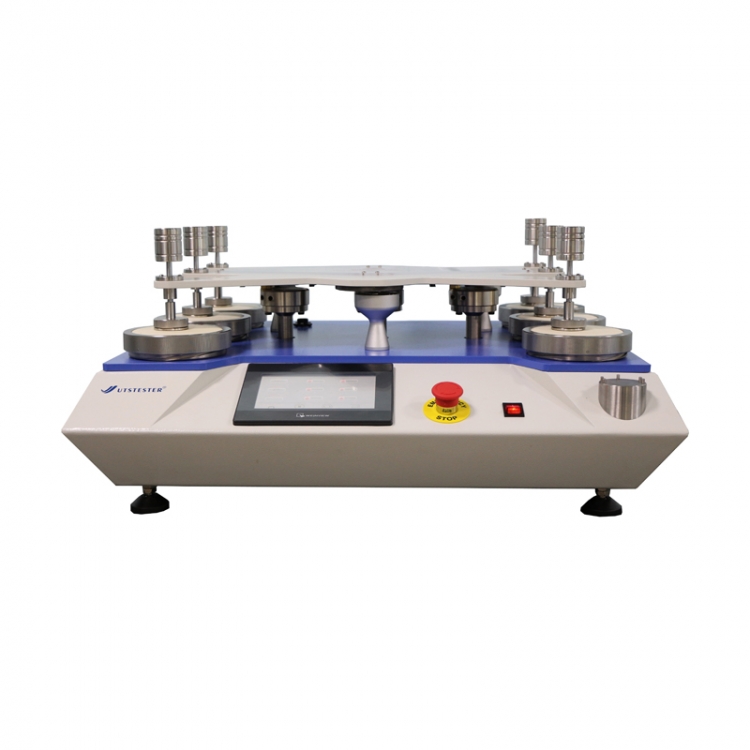

Martindale Abrasion and Pilling Tester M008A-6

Martindale Abrasion and Pilling Tester M008A-6

Model :
M008A-6
Brand :
UTSTESTER
Certificate :
CE, ISO 17025
Lead Time :
10-15 Days
Payment :
TT, LC
Original Region :
MADE IN CHINA
Port Of Dispatch :
CHINA PORT
Standards :
ISO 12947, ASTM D4966,SO12945-2, ASTM D4970, etc

Inquiry

Overview

The Martindale is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.

4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.

Standards

Abrasion: ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775

Pilling: ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, GB/T 4802.2.

Features

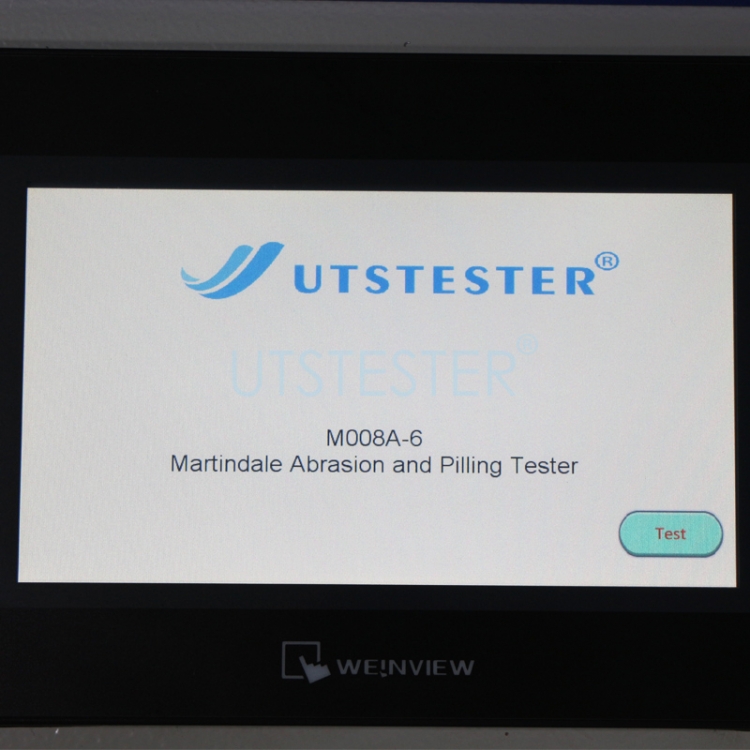

• Touch screen controller with individual station counters

• Light weight motion plate and storage rack

• Multiple speeds can be used for custom tests

• 4, 6, 8, or 9 position base uses the least bench space of large martindales

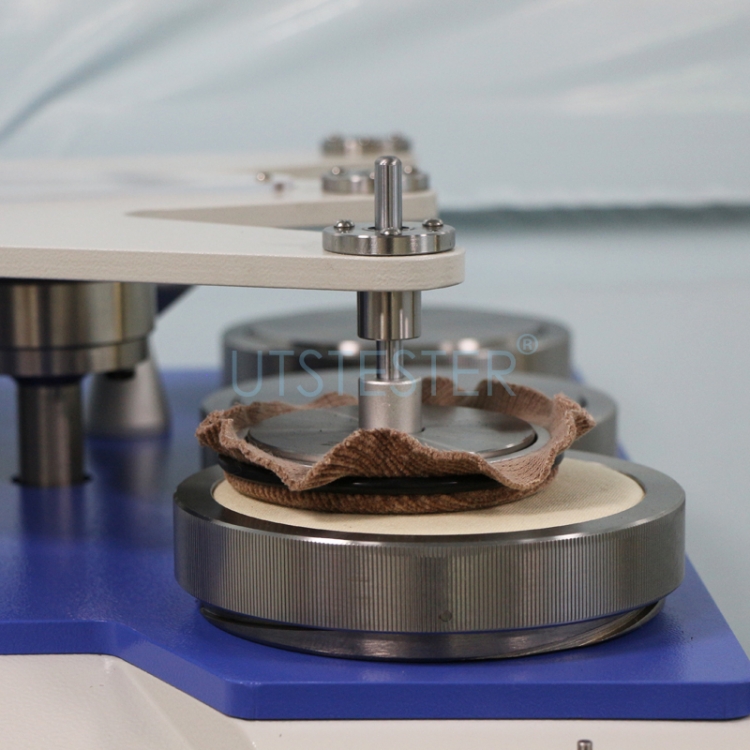

• Test head choices include standard abrasion, pilling.

• Motion according to 24mm and 60mm Lissajous track.

• Alarm after test finished

Key Parameters

Model		M008A-4	M008A-6	M008A-8		M008A-9
Working positions		4	6	8		9
Counting range		0~999999 times
Test load	Abrasion test	Sample holder: (198 ±2)g Load for Funishings: (597±5)g
		Sample holder: (198 ±2)g Load for Garment material: (397±5)g
	Pilling test	Stainless steel load: (155 ± 1) g Stainless steel disc: (260 ± 1)g
Effective friction diameter of grinding block		A) Abrasion Holder : Φ(28.65 ± 0.05)mm
		B) Pilling Holder : Φ(90 ± 0.10)mm
Rotational speed		47.5±2.5r/min(20-70 r/min adjustable)
Weight of loading hammer		2.5kg±0.5kg
Rubbing/pilling stroke		60 ±0.5mm
		24 ±0.5mm
Power supply		1Phase AC 220V 50/60Hz 500W
Dimensions(L x W x H)(cm)		60×55×33	78×62×33	78×62×33	78×62×33
Weight(kg)		77	107	120	130

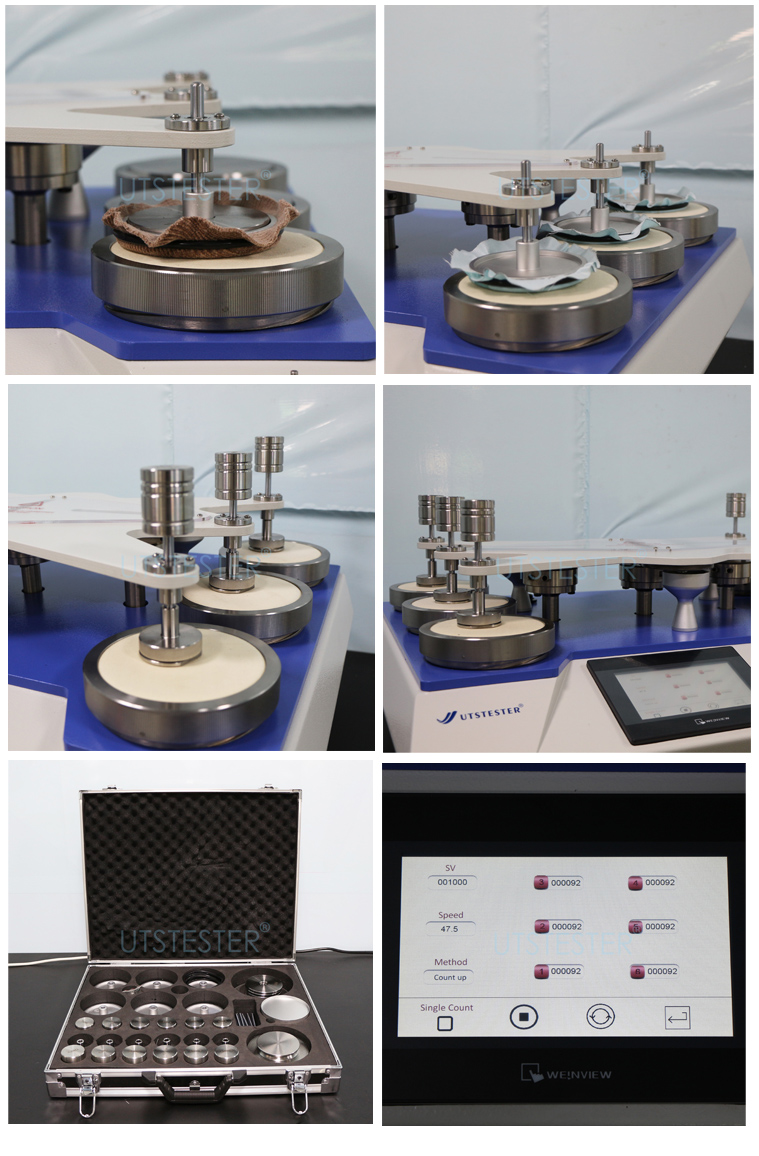

Demonstration

Materials To Be Tested
