M011B Random Tumble Pilling Tester

Model :
M011B
Brand :
UTSTESTER
Certificate :
CE, ISO 17025 Calibration Certificate
Lead Time :
15-30 Days
Payment :
TT, LC
Original Region :
MADE IN CHINA
Port Of Dispatch :
CHINA PORT
Standards :
GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375

Inquiry

Overview

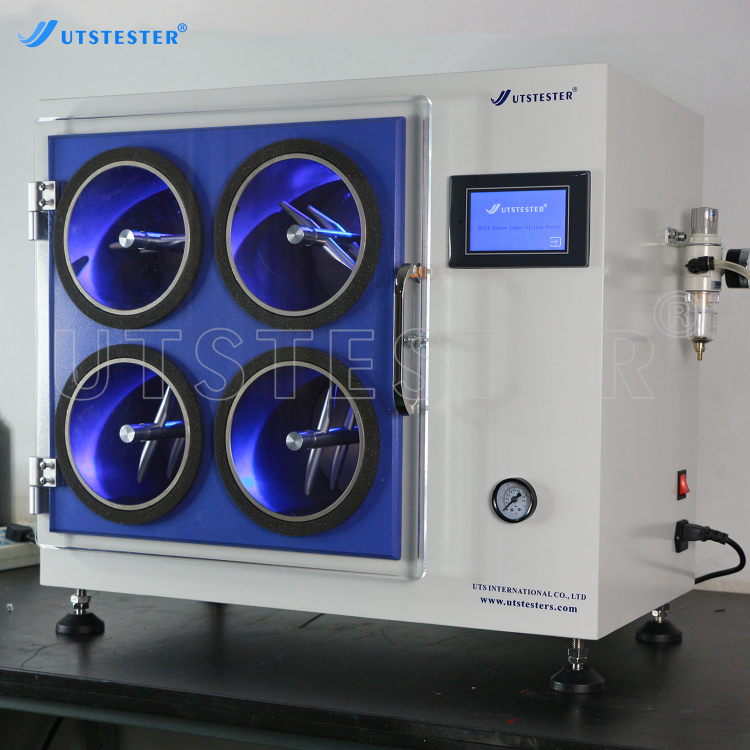

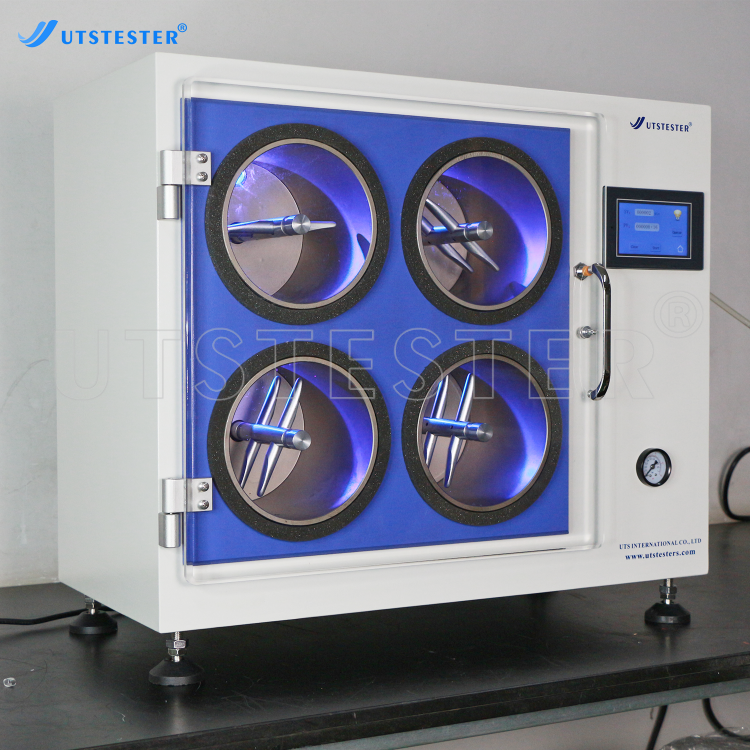

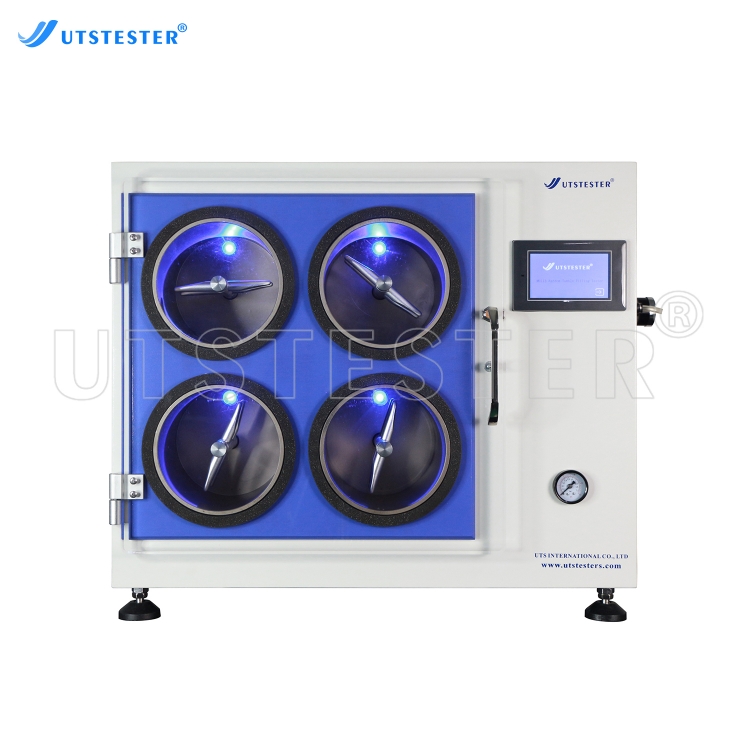

M011B Random Tumble Pilling Tester

M011B Random Tumble Pilling Tester is used to test the pilling performance of fabrics under the condition of free tumbling and rubbing in a roller box.

Features

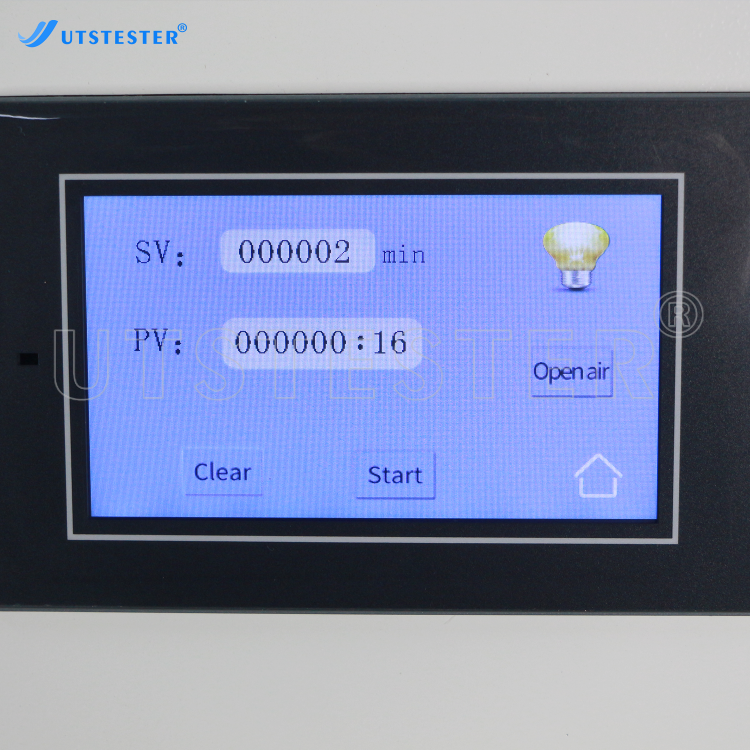

1. The instrument adopts touch screen control, the interface is simple and easy to understand, easy to operate.

2. With open door detection, the door open motor automatically stops rotating, making the instrument safer.

3. One-button start, press the start button gas source and motor work at the same time, the experiment is completed automatically stop, and buzzer reminder.

4. The rotating component adopts round belt pulley, the instrument runs smoothly and has low noise.

Test Standards

GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375

Key Parameters

Model	M011B
Test chambers	4
Roller size	(146±1) x (152±1)mm
Cork lining size	(452±1) x (146±1) x (1.5±1) mm( L x W x H)
Stirring rod size	L=121±1mm
Rotating speed	1200±1 rpm

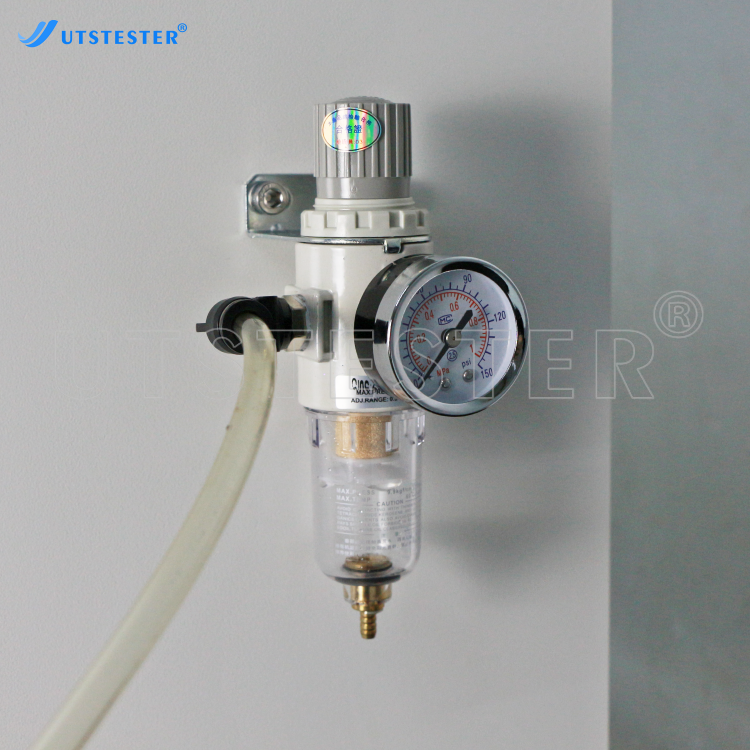

Compressed air	0.014 - 0.021 Mpa
Power supply	AC220V 50/60Hz
Dimensions	480×400×680mm (L×W×H)
Weight	80kg
