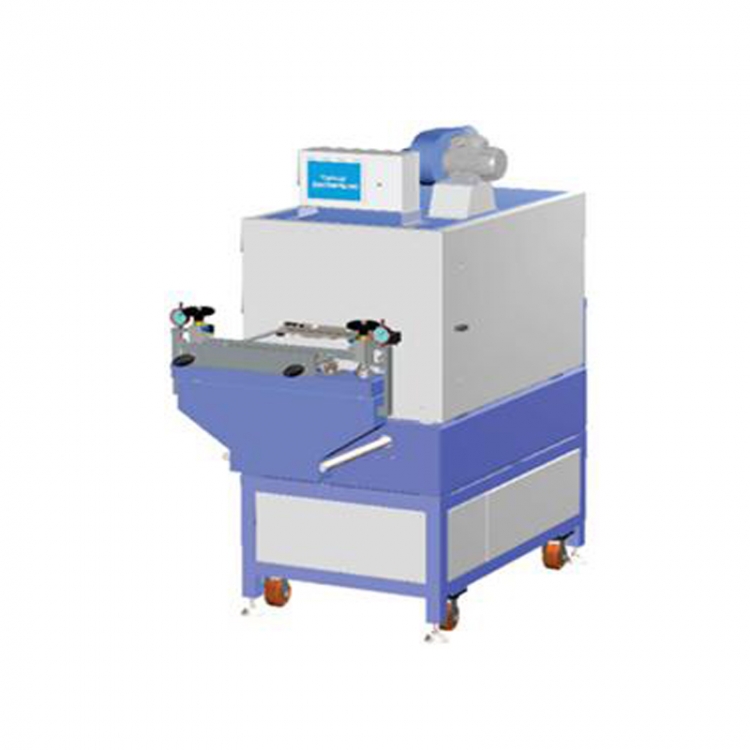

It is a standalone machine where versatility meets agility. Lab Coating Machine can handle all types of fabrics / Film / Paper and finds utility in textile / leather / paper as well as pharma industry. This machine has the ability to deliver uniform and consistent samples with notable reproducibility and therefore, recommenced to be a part of R&D as well as QC Laboratories.
Substrate: Fabric
Coating speed: Motorized, adjustable
Coating Width: 18 Inches
Feed and delivery: Motorized, adjustable
Temperature: 250°C or above
Power: 10 KW approx.
Coating unit and dryer separate, set the gap manually.
Gap indicated by dial gauges.
Removable coating frame
Blower with variable speed
Coating unit separated from dryer
Knife on roll & knife on air arrangement
1mm to 5mm shoe knife
Substrate Size: 18 Inches x 17 inches
Coating frame in/out motorized
