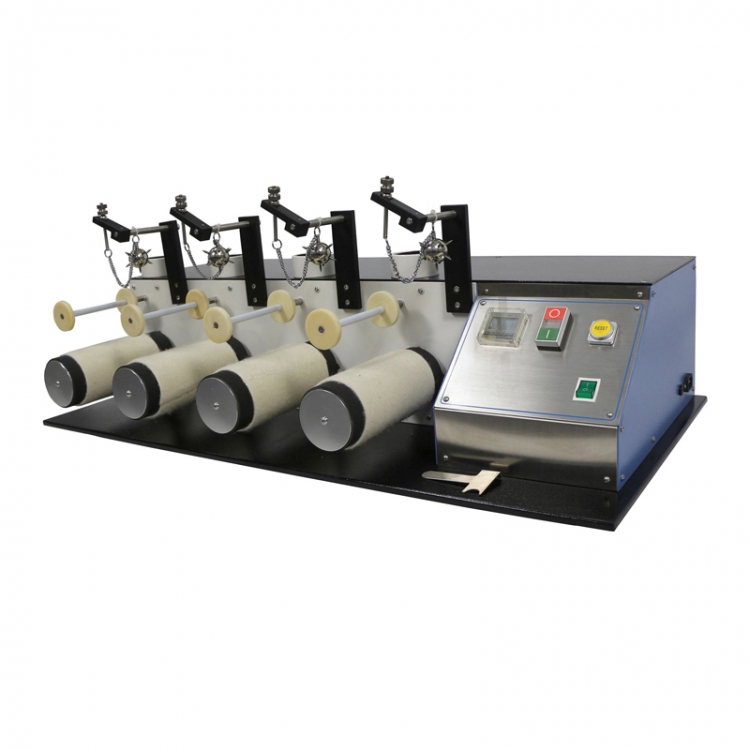

ICI Mace Snag Tester M024A

M024B ICI Mace Snag Tester is designed to test the snagging resistance property for knitted fabric and other easy to be snagged textiles. The instrument should comes with a pilling assessment cabinet and standard photographs.

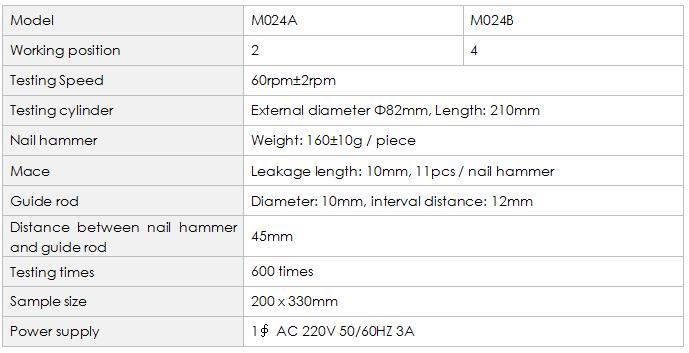

KEY SPECIFICATIONS

Support Services

UTS provide the complete support for the full life of your M024A ICI Mace Snag Tester :

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Related Products

http://www.utstesters.com/taber-wear-and-abrasion-testers-m009a_p76.html

http://www.utstesters.com/martindale-abrasion-and-pilling-machine-m008a_p26.html

http://www.utstesters.com/ici-pillng-box-tester-m010_p27.html

http://www.utstesters.com/random-tumble-pilling-tester-m011b_p28.html

http://www.utstesters.com/stoll-quartermaster-universal-wear-tester-m013_p77.html

TEST PRINCIPLE

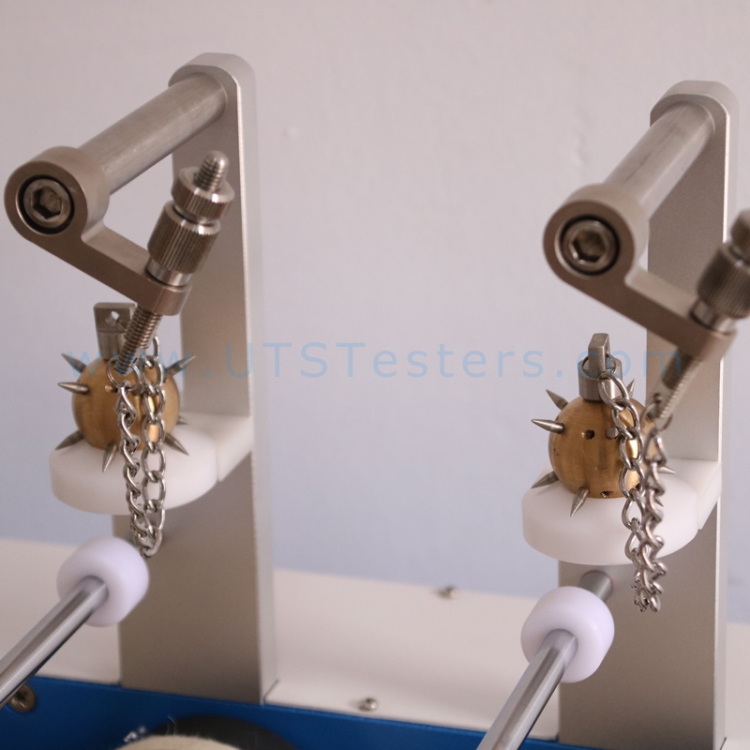

Make the nail hammers (which hanged with chain) get around the guide rod and put onto the surface of samples(which have been entangle on the tumbler).

After tumbler rotated at constant speed and specified times, take down samples, put onto pilling assessment box and compare with rating card to assess the grade.

STANDARDS

ASTM D3939, GB 11047, JIS L 1058, VDA 230-220

1.Two and Four test stations available.

2.Viewing assessment cabinet needed.

3.Standard photographs needed.

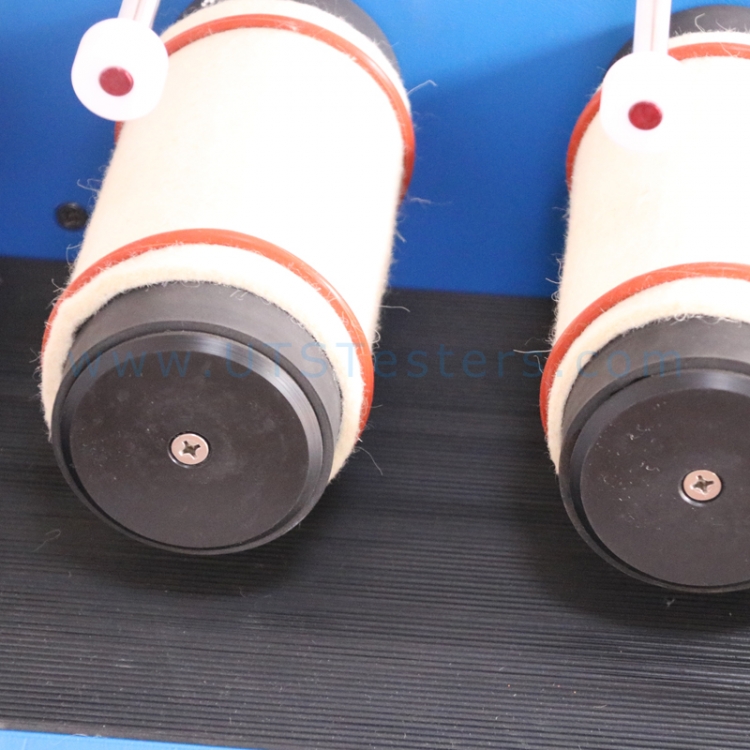

4.Pre-mounted felt sleeves included.

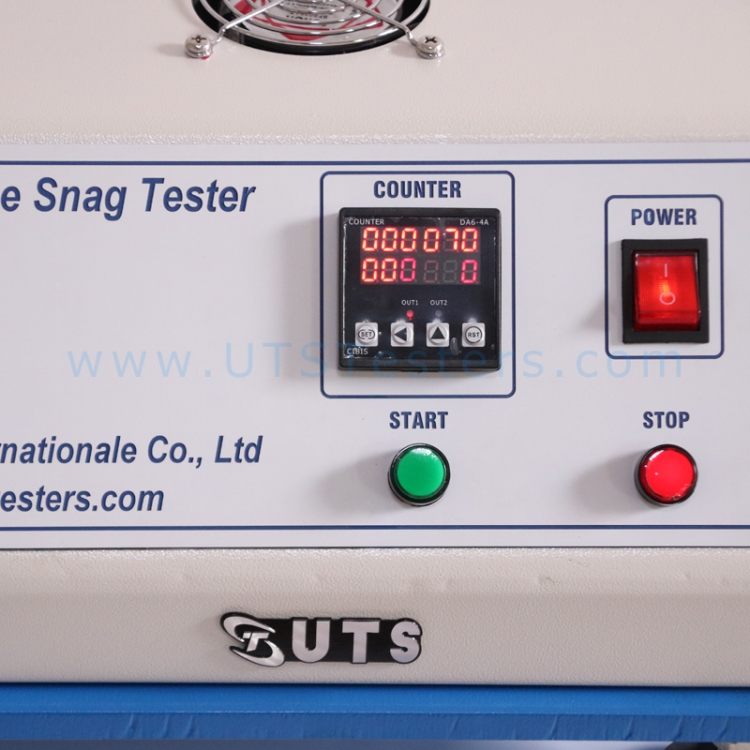

5.Rotating cycle number can be preset. Machine will stop automatically when rotating cycles reached.

6.Length of chain is adjustable.

M024A ICI Mace Snag Tester  is applicable to the determination of:

the snagging resistance property for knitted fabric and other easy to be snagged textiles.
