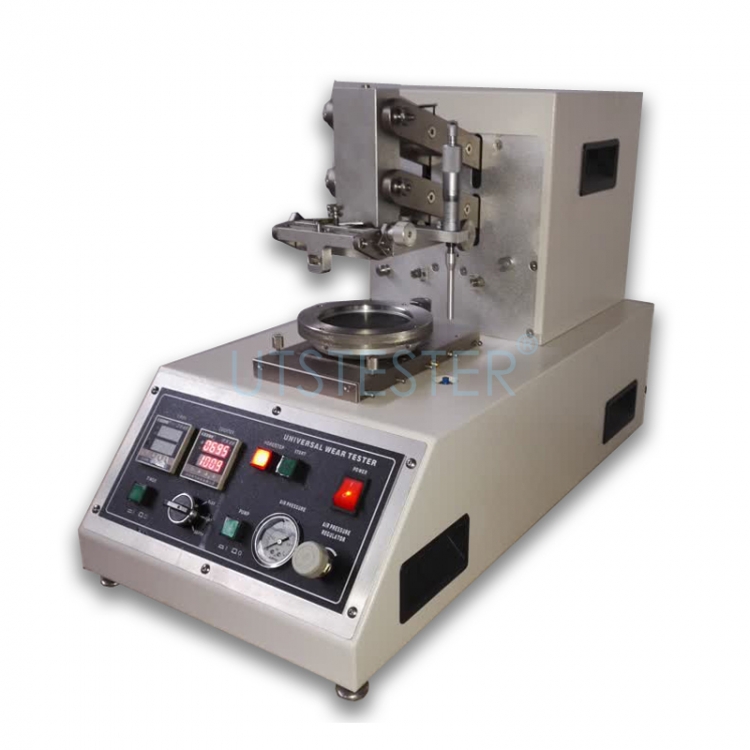

Stoll Quartermaster Universal Wear Tester M013

M013 Stoll Quartermaster Universal Wear Tester is a multipurpose Instrument for measuring resistance to laboratory wear and abrasion of such materials as woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.

It is a self-contained instrument which gives direct evaluation of quantitative parameters for resistance to surface abrasion; edge, fold and projection abrasion; roll and fold testing; flex abrasion. Automatic end points which can be provided for all test procedures secure definite results.

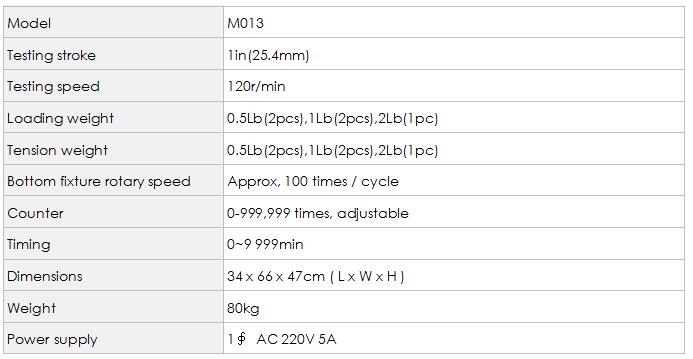

Key Specifications

Support Services

UTS provide the complete support for the full life of your M013 Stoll Quartermaster Universal Wear Tester:

ü English Manual

ü Certificate of Quality

ü Remote Online Support

ü Breakdown Support

ü Applications Support

ü 12 months warranty

ü CE, ISO 17025 Certificate

ü 7 * 24 Service

ü Spare Parts

ü Training

ü Installation

Related Products

http://www.utstesters.com/taber-wear-and-abrasion-testers-m009a_p76.html

http://www.utstesters.com/martindale-abrasion-and-pilling-machine-m008a_p26.html

http://www.utstesters.com/ici-pillng-box-tester-m010_p27.html

http://www.utstesters.com/random-tumble-pilling-tester-m011b_p28.html

Test Principle

Mount sample and abrasion material on the fixture of machine, add specified load and test sample at specified stoke and speed. Inspect abrasion condition after testing a certain of times, or test the times of sample rubbing off to assess sample abrasion resistance property and surface pilling situation, so as to provide reference for improving fabric craft.

Install sample on fixture of instrument with adding a certain of load, and under predetermined stroke and speed, use standard abrasion materials(such as wire mesh, carborundum, etc) to rub sample at specified times so as to check its color changing situation.

Standards

ASTM D3514, D3885, D3886

AATCC 119, 120

JIS L1096

M013 Stoll Quartermaster Universal Wear Tester is applicable to the determination of:

woven and knitted fabrics, footwear, napped and pile fabrics, hosiery, felt, non-woven and coated fabrics, yarns, threads and cordage, plastic films, rubber sheeting, leather, paper and, many other materials.
