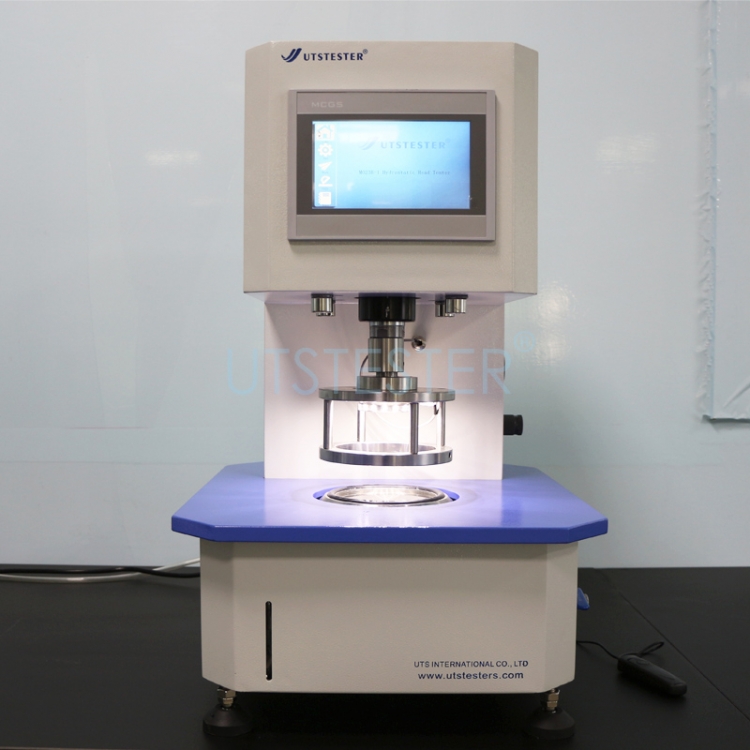

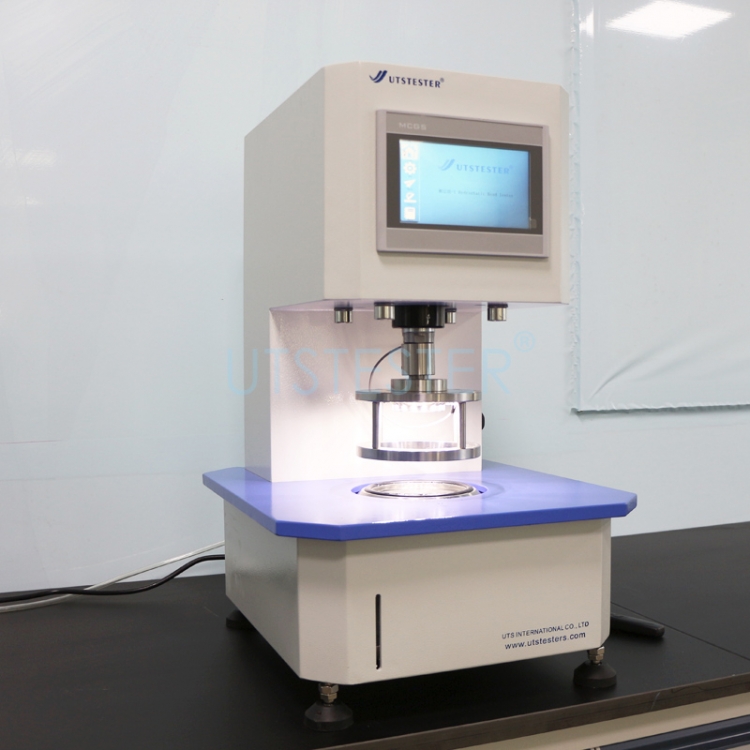

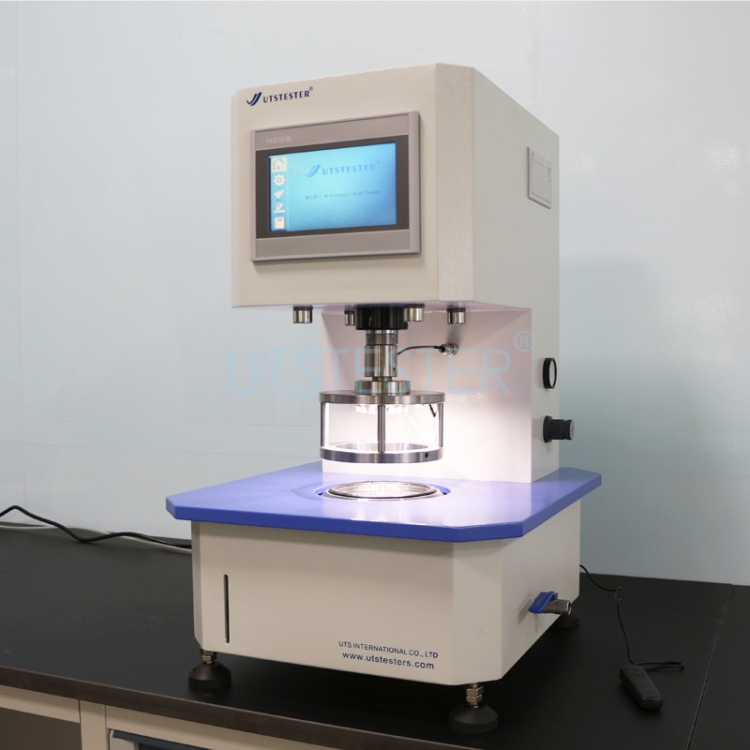

To test the waterproof property for fabric, Such as canvas, medical non-woven material, coated fabric, geosynthetic materials, cloth, tent cloth, tarpaulin and rainproof clothing fabric.
Standards
GB/T 4744, FZ/T 01004, JIS L 1092, ISO 811, ISO1420, BS EN20811, AATCC127, DIN 53886,
ERT120-1 160-0, AFNOR G07-057
Features
1. Touch screen control, Chinese and English menus, man-machine dialogue mode, easy to operate.
2. Built-in thermal printer, convenient to quickly print test results on site.
3. Adopt servo motor drive system, microcomputer control water flow, wide range of pressurization rate and stepless adjustment, accurate pressurization speed.
3. High-precision pressure sensor is used, the sensor is automatically overloaded, and the pressure control adopts dynamic feedback adjustment to effectively prevent pressure overshoot.

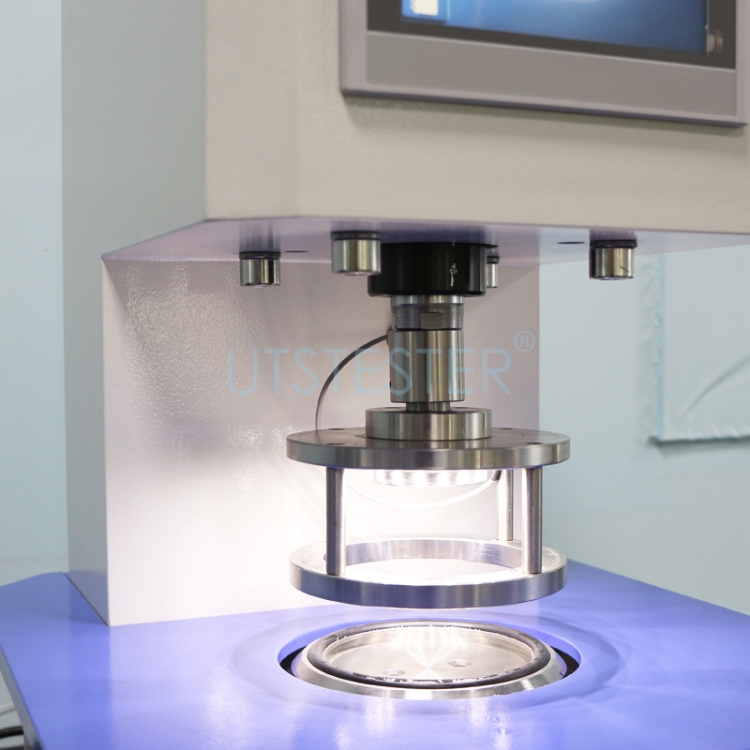

4. Pneumatic clamping of the sample is convenient and quick, so that the sample is evenly stressed and prevents damage to the sample.
5. Five test modes are optional, pressurization method, constant pressure timing method, constant pressure timing method, flexural relaxation and water leakage method.
6. Seven test units can be switched freely: Pa, kPa, mmHg, mmH2O, cmH2O, PSI, Bar.
7. Built-in professional LED lighting device is convenient to observe water droplets, and is equipped with a special droplet recording button, which can record the results of water droplet pressure multiple times.
8. It has automatic identification and shutdown of sample rupture in the experimental process and records the experimental value.
9. Instrument control mode: host touch screen control and desktop computer control are optional.
Optional Models
Model
|
Measuring rage
|
Accuracy
|
water pressure rise rate
|
Specimen grip area
|
M023B-1
|
1Pa~200kPa
|
0.2%F.S
|
(1~100)kPa/min
|
100cm²
|
M023B-2
|
1kPa~500kPa
|
(1~100)kPa/min
|
7.8cm²(optional)
|
M023B-3
|
1000kPa
|
Customized
|
Key Specifications
Pressure display resolution
|
0.01kPa
|
Sensor test accuracy
|
≤1% (5% to 100% within the full scale range of a single sensor)
|
Experimental area
|
100cm², 7.8cm² (optional)
|
Pressurization rate
|
1kPa~100kPa/min (stepless adjustable)
|
Working mode
|
pressurization method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection test
|
Display mode
|
color screen in Chinese and English
|
Printer
|
thermal micro printer
|
Sensor Protection
|
Overload self protection
|
Testing unit
|
pa, Kpa, cmH2O, mmHg
|
Power supply
|
AC220V 50Hz 500W
|
Dimensions
|
500×440×680mm
|
Weight
|
70kg
|
√ Note: our company has always been committed to product performance and functionality of innovation and improvement, based on this reason, the product technical specifications will change accordingly. The above situation hatred without prior notice, the company reserves the rights of modification and the final explanation right.
