Button Snap Pull Tester M004

  • Model :

    M004A
  • Brand :

    UTS
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL, SGS, National Textile University
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    16 CFR 1500.51~53 ASTM F963 EN71-Part 1 M&S P115A
Inquiry

Button Snap Pull Tester is to determine the holding or breaking strength of the snaps, buttons or fixed accessories attached onto garments. Aim at providing the strict reference basis for garments manufacturers, to ensure the snaps, buttons and fixed accessories can be fixed on garments properly, so as to prevent from snap button fall off and swallow risks for infants.

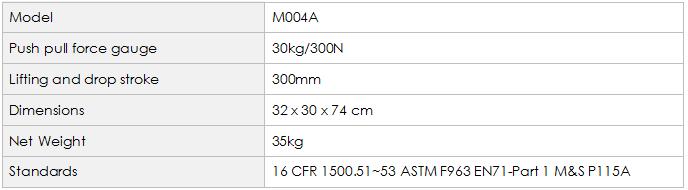

Key Parameters

Button Snap Pull Testerine

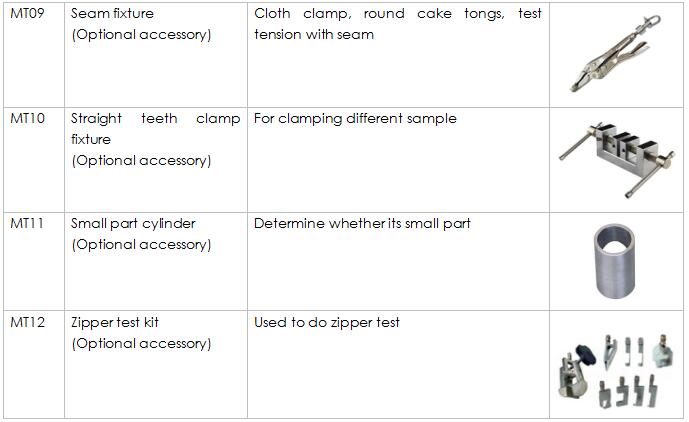

Accessories




Support Services

UTS provide the complete support for the full life of your M004A Button Snap Pull Tester:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation


Principle

Clamp the sample attached with attachment( like snap button) on the fabric fixture at the bottom of machine. Select the suitable fixture and install it onto push and pull force gauge. Clamp the attachment on the fabric and apply the pulling force to pull the attachment away from fabric and measure the force value. Or apply a certain of pulling force value and time to test whether the attachment can firmly connect to fabric.

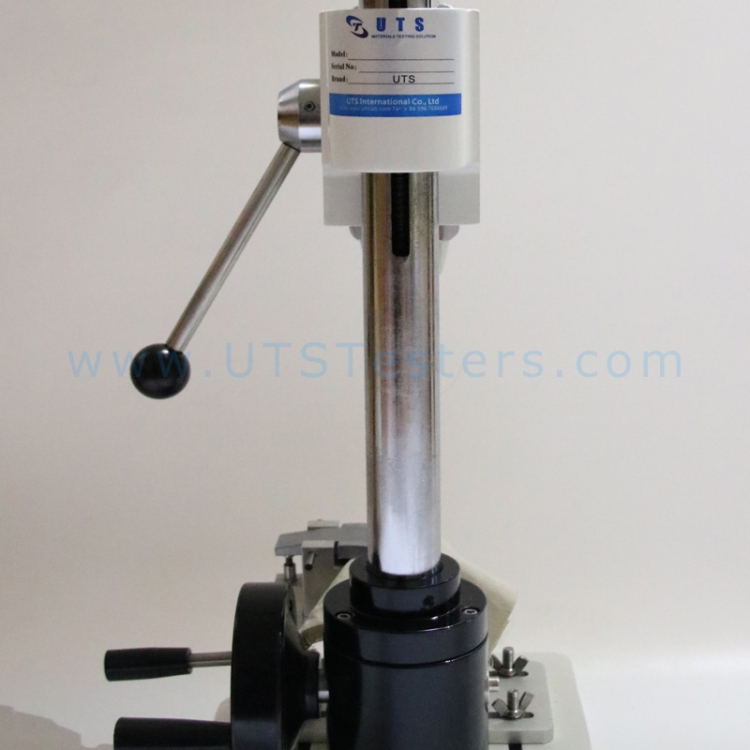

This unit  consists of a high precision force gauge, a firm stand and various grips. The specimen accorded with test standards is to be fixed horizontally, then conduct the vertical tensile test on various buttons on garments. The detachment of buttons or other fixed accessories may be classed as small parts, meanwhile, the broken small parts may be required sharp edge and sharp point tests. Hence, extra testing instruments may be recommended, including below:

Sharp Edge Tester (T001)

Small Parts Cylinder (T003)

Sharp Point Tester (T004)


It is widely used in snaps, buttons, toys testing for many brands like H&M, NIKE, NEW BALANCE, LIVIS, NEXT, GAP, etc.


Standards

16 CFR 1500.51~53 ASTM F963 EN71-Part 1 M&S P115A


Features

1. Comply with standards 16 CFR 1500.51~53, ASTM F963, EN71-Part 1, M&S P115A.

2. Manually operation, available to install various fixtures to grip samples.

3. This unit consists of a high precision force gauge, a firm stand and various grips.

4. Calibration weight equipped for regular calibrate machine.

5. This device is durable with stable life service time.




M004A Button Snap Pull Tester is applicable to the determination of:

Snaps, buttons and fixed accessories fixed on garments.
