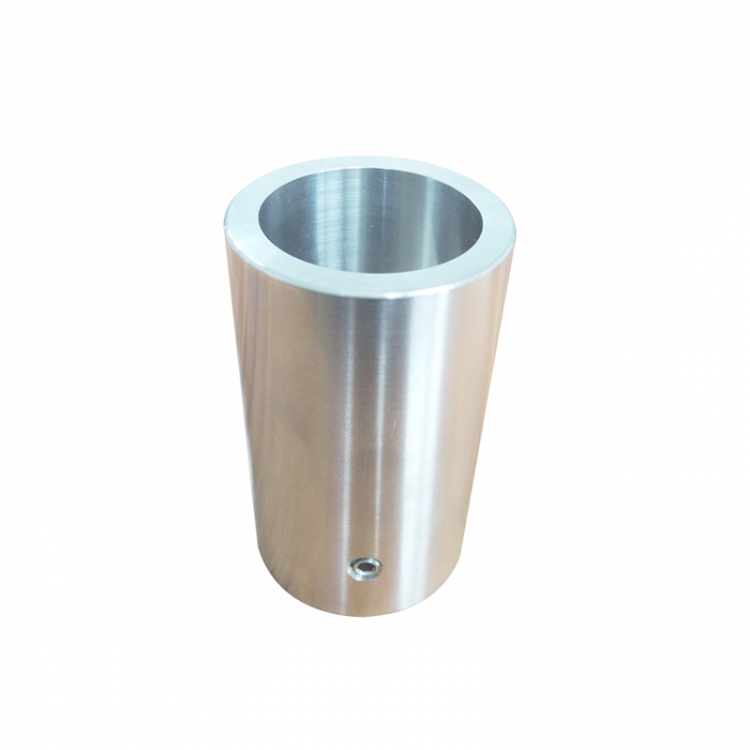

Small Part Cylinder T003

T003 Small Part Cylinder is to determine whether child-related products & other articles intended for use by children under 3 years old have potential hazards of choking, suffocate, suction, swallow, etc.

If any objects can fit completely into the cylinder without compressing & in any orientation, it is defined as a “Small Part”. Its internal dimensions simulate the fully expanded throat of a child under 3 years old.

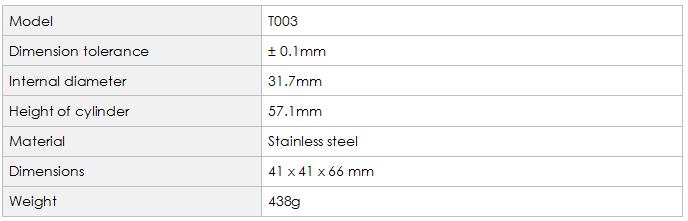

Key Specifications

Test Principle

1. Place small part into small part cylinder under itself weight effect.

2. If any objects can fit completely into the cylinder without compressing & in any orientation, it is defined as a “Small Part”.

Standards

16CFR 1501

EN 71-1

ASTM F963

ISO 8124-1

GB6675-2

Features

1. Small part test includes deciduous components during normal use and foresee reasonable abuse.

2. Under without external pressure condition, put the disassembled the components or deciduous components on toys into small part cylinder. If pass the cylinder then it is seen as small part.

3. This small part cylinder is in stainless steel material.

4. Its internal dimensions simulate the fully expanded throat of a child under 3 years old.

T003 Small Part Cylinder is applicable to the determination of:

child-related products & other articles intended for use by children under 3 years old.
