A fiber is a substance composed of continuous or discontinuous filaments.In plants and animals, fiber plays an important role in maintaining tissue.Fiber has a wide range of USES. It can be woven into fine thread, thread head and hemp rope. When making paper or weaving felt, it can also be woven into fiber layer.Textile fiber is divided into natural fiber and chemical fiber.Flax, cotton yarn and hemp rope are natural fibers obtained from plants. Wool and silk are natural fibers obtained from animals.There are many kinds of chemical fiber, such as nylon, man-made fiber, glass fiber and so on.

Properties of textile fibers

(1) length

Length is the index that measures length degree of textile fiber.The length of fiber has an important effect on the properties of textiles. Generally speaking, the longer the fiber, the better the yarn and fabric quality.

(2) fineness

The cable density, densification and number of fiber fineness units, which are all indexes to measure the thickness of textile fiber.The linear density and densification are fixed length system, the larger the value, the thicker the fiber;The number is fixed weight system, the larger the value, the thinner the fiber.

(3) mechanical properties

1. strong

The maximum tensile force that textile fiber can bear when stretched to break is called tensile breaking strength, abbreviated as strength, and the symbol is F.The legal unit of strength is cattle (N), and textile fibers are usually expressed in Chinese cattle (cN).

2. the intensity

The ratio of strength to fibre sectional area is known as tensile breaking strength (sigma b).The legal unit of strength is N/m2(or Pa), and N/mm2(or MPa) is commonly used in textile fibers.

3. Specific strength

The ratio of strength to linear density is called specific intensity and is denoted as sigma bd.The legal unit of specific strength is N/ Tex, and cN/ Tex is commonly used for textile fibers.Traditionally, specific intensity is sometimes called intensity.

4. Elongation at break

Elongation at break is a measure of fiber deformation ability.The percentage of the elongation of textile fiber to the original length is called elongation at break.

5. elastic

Textile fiber and its products are subjected to external force and deformation in the process of processing and use.When the force is removed, one part of the fiber can recover its deformation, while the other part does not.Elasticity is the ability of a fiber to recover from deformation.

6. Elastic response rate

Elastic recovery rate is a measure of fiber deformation recovery ability.Textile fiber tensile deformation and elongation (not broken), after the removal of external force, the fiber due to elasticity and natural shrinkage.The percentage of shrinkage against the original elongation is called the elastic recovery rate.

[scope of application] :

Used for testing the breaking strength, elongation at break, elongation at constant elongation, elongation at constant load, creep and other performance indexes of various single fiber, wire, hair, carbon fiber and other materials.

[up to standard] :

GB/T14337, 9997, 13835.5, ISO 5079, 11566, ASTM D 3822, BS 4029, etc.

[instrument characteristics] :

1, touch liquid crystal display (LCD), Chinese and English menu, the interface is simple and easy to understand, simple and intuitive operation.

2. The 32-bit cortex-m3 microprocessor is adopted, with strong anti-interference performance and fast data processing.

3. High speed AD is adopted with high sampling frequency and high test accuracy.

4. Automatically display, analyze and save test data;The instrument and thermal printer can print the report directly.

5, pneumatic clamping, uniform clamping, and can adjust the pressure of the fixture, avoid sample slippage or damage, easy to use.

6. The transmission mechanism adopts ball screw set, synchronous belt, synchronous wheel, etc., with stable operation, high precision and low noise.

7. Support online work with professional computer software.

8. Software analysis functions: fracture point, break point, stress point, yield point, initial modulus, elastic deformation, plastic deformation, etc.

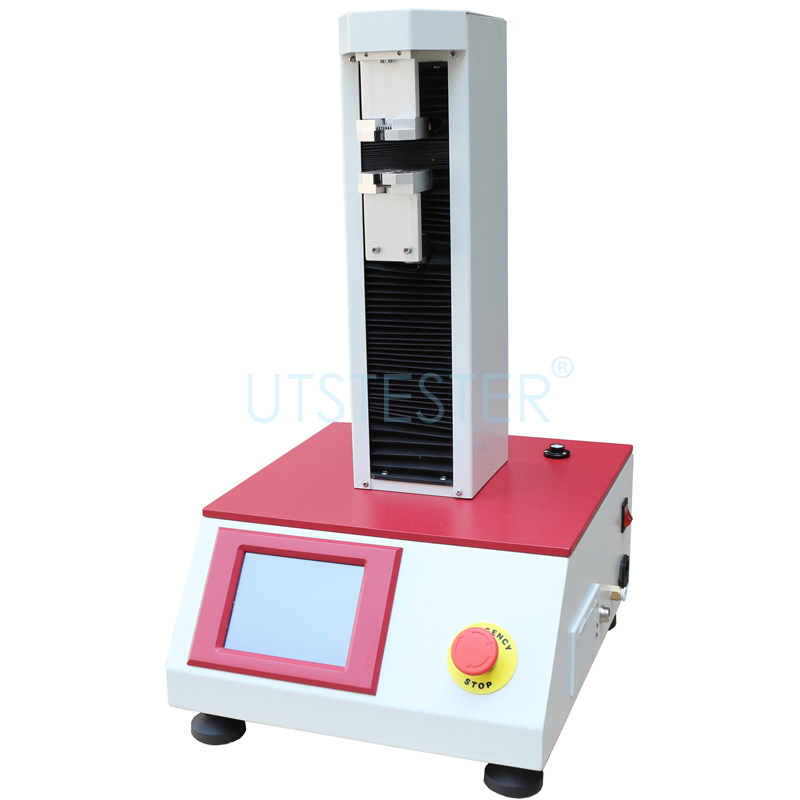

Single fiber strength tester is an instrument for testing the strength of the fiber material of the fabric. is used for test of tensile strength of various chemical fibre,cotton yarn,wool,silk,linen and glass fibre.
