I. What Is Fabric Crease Recovery?

Fabric crease recovery (also known as wrinkle recovery) refers to a fabric’s ability to automatically return to a smooth, flat state after creases are formed by external folding forces. This property directly affects a garment’s ability to maintain its appearance and its wrinkle-resistant qualities, making it one of the key indicators of fabric quality.

In everyday life, the core technical indicator behind concepts such as “non-iron shirts” and “low-maintenance fabrics” is crease recovery. Excellent crease recovery performance means:

Fabrics do not develop noticeable wrinkles easily after wearing; they require little or no ironing after washing; and they maintain a smooth, crisp appearance over the long term.

II. Testing Principles of Crease Recovery

2.1 Testing Mechanism

Crease recovery testing simulates the folding-recovery process of fabric during actual use:

1. Applying deformation: Fold the fabric sample according to specified procedures, apply a standard pressure (typically 500g), and maintain it for a set duration (typically 5 minutes)

2. Releasing stress: After removing the pressure, allow the sample to recover freely

3. Measure the recovery angle: Measure the angle between the sample’s folded surface and the horizontal plane (recovery angle); a larger angle indicates better recovery.

2.2 Two Main Testing Methods

Horizontal Method: The sample is folded horizontally, and vertical pressure is applied; this is the method commonly used in international standards.

Vertical Method: The sample is folded while suspended vertically; this method is required by specific standards.

III. Detailed Explanation of Testing Standards

BS EN 22313 / ISO 2313

- Specifies the test procedure for the horizontal method

- Applicable to all types of woven fabrics

- Test conditions: 500 g pressure, 5-minute loading time

AATCC 66

- Uses the vertical method for testing

- Widely used in the North American market

- Data differs from the ISO method; direct comparison is not possible

GB/T 3819

- Equivalent to ISO 2313

- Applicable to crease recovery testing of all types of textiles

- The mainstream method in China’s textile testing laboratories

IV. Testing Equipment and Operating Procedures

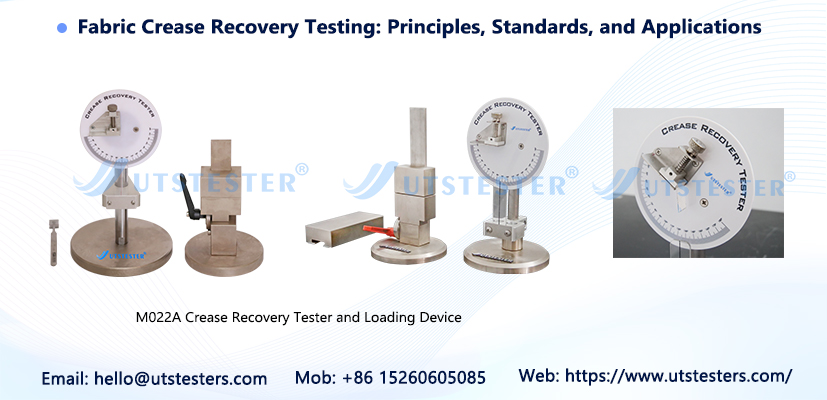

4.1 Core Equipment

Components of the Crease Recovery Tester

Pressure Application Device: Precision pressure weight (500 g ± 5 g)

Timing System: Precise control of pressure application and recovery times

Angle Measurement: Dedicated protractor or digital measurement system

Environmental Control: Standard atmospheric conditions (20 ± 2°C, 65 ± 2% RH)

4.2 Standard Test Procedure

Step 1: Sample Preparation

Cut test specimens of specified dimensions from the sample; take several specimens in both the warp and weft directions (typically 5 each); condition them under standard atmospheric conditions for at least 24 hours.

Step 2: Folding and Pressing

Fold the specimen in half with the right side facing inward (or as required by the standard); place it in the pressing device and apply a pressure of 500 g; maintain this pressure for 5 minutes ± 5 seconds.

Step 3: Free Recovery

Quickly release the pressure and transfer the test specimens to the recovery device; allow the specimens to recover freely for 5 minutes ± 5 seconds

Step 4: Angle Measurement

Measure the angle between the two surfaces using a dedicated protractor; record the recovery angle value (accurate to 1 degree)

Step 5: Result Calculation

Calculate the average recovery angle for the warp and weft directions separately; calculate the total recovery angle (warp + weft) if necessary

V. Key Factors Affecting Crease Recovery

5.1 Fiber Factors

Polyester (polyester fiber): Excellent recovery, high elastic modulus, and molecular chains that readily return to their original shape

Wool: Good recovery, excellent elastic recovery properties

Nylon: Moderate recovery, performance decreases significantly after moisture absorption

Cotton: Poor recovery, high rigidity of cellulose molecules, prone to forming hydrogen bonds that fix creases

Rayon: Poor recovery, low wet modulus, extremely prone to wrinkling

5.2 Fabric Structure Factors

Fabric Density: Denser fabrics generally exhibit better recovery

Yarn Twist: High-twist yarns help improve recovery

Fabric Weave: Plain < Twill < Satin (recovery increases in this order)

Fabric Thickness: Thinner fabrics are more prone to permanent wrinkles

VI. Application and Interpretation of Test Results

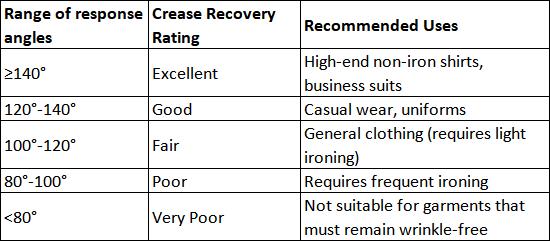

6.1 Classification of Recovery Angle Grades (for reference)

6.2 Anisotropy Analysis

The recovery angles of a fabric’s warp and weft directions often differ:

1. High warp recovery angle: Indicates good wrinkle resistance in the longitudinal direction.

2. High weft recovery angle: Indicates good wrinkle resistance in the transverse direction.

3. Significant difference between the two: Suggests that the fabric may have uneven weaving or finishing.

6.3 Practical Application Guidelines

Recommendations for apparel manufacturers:

1. Business shirt fabrics: Recommended total recovery angle (warp + weft) ≥ 250°

2. Casual pants fabrics: Recommended total recovery angle ≥ 220°

3. Home textile products: Recovery angle requirements may be appropriately relaxed

VII. Frequently Asked Questions and Solutions

Q1: Why do test results for the same fabric vary when tested multiple times?

Possible causes:

1. Insufficient acclimatization of the test specimen

2. Differences in sampling location (performance varies between the fabric edge and the center)

3. Inconsistent testing procedures (application and release speeds)

Solution: Strictly adhere to standard conditions, increase the number of test specimens, and calculate the average

Q2: How should data from ISO methods be converted to AATCC methods?

Note: The two methods are based on different principles, so there is no exact conversion formula. Recommendations:

1. For exports to Europe and the U.S.: Prioritize AATCC 66 testing

2. For general trade: Use ISO 2313 or GB/T 3819

3. For internal quality control: Use a single method consistently and establish a company database

Q3: How can fabric crease recovery be improved?

Technical approaches:

1. Select fibers with inherent elasticity (e.g., polyester-spandex blends)

2. Optimize fabric structure (appropriately increase density)

3. Apply resin finishing or liquid ammonia finishing

4. Develop new types of elastic composite yarns
