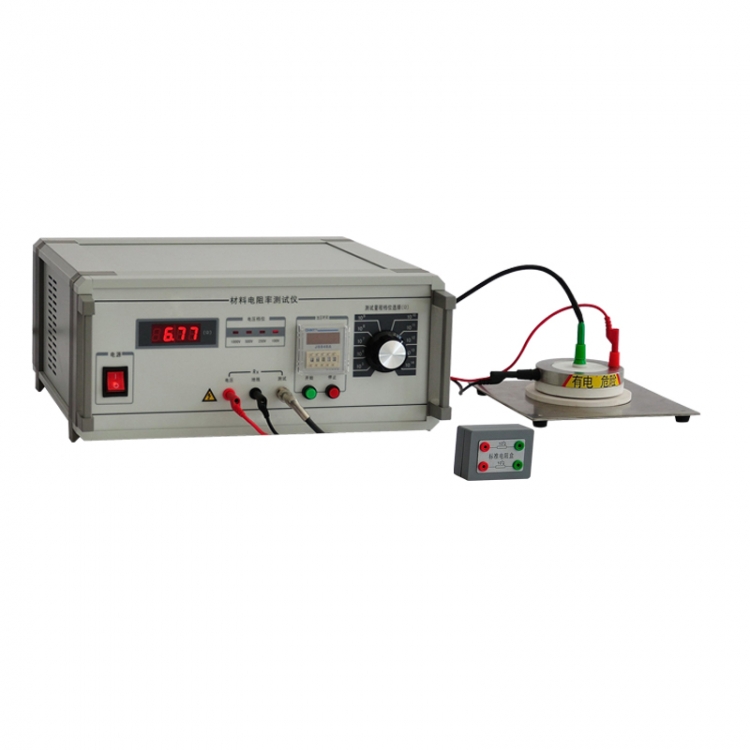

Antistatic Test Equipment M047

M047 Antistatic Test Equipment is used to determine the surface Specific Resistance(surface resistivity), vertical resistivity, Volume resistance (volume resistivity) for various kinds of textiles, garment, thin film and its insulating materials, so as to reflect test materials’ electrostatic performance.

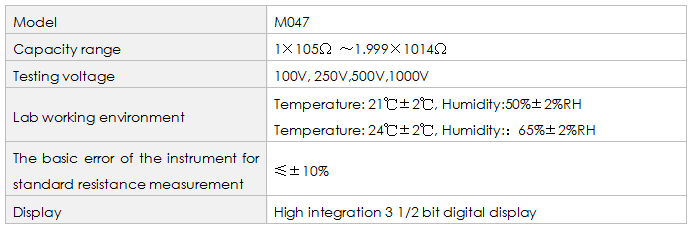

Key Specifications

Support Services

UTS provide the complete support for the full life of your M047 Antistatic Test Equipment:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Test Principle

The DC voltage of different gears is added to the sample, and the weak current flowing through the sample is amplified by the standard resistance and take as sample and read from the high impedance meter.The figures show the resistance value directly, with high accuracy, quick display, good stability and easy reading

Standards

BS EN 1149-1

BS EN 1149-2

AATCC76

DIN 54345-1

GB/T 12703.4-2010

GB/T 22042-2008

GB/T 22043-2008

GB/T 1410-2006

Adopt 3 electrode method to test samples. It mainly consists of Flat plate electrode device and high resistance meter.

When instrument at stable working voltage and without signal input state, zero wander is less than ±5% within 1-8 hours.

M047 Antistatic Test Equipment is applicable to the determination of:

various kinds of textiles, garment, thin film and its insulating materials.
