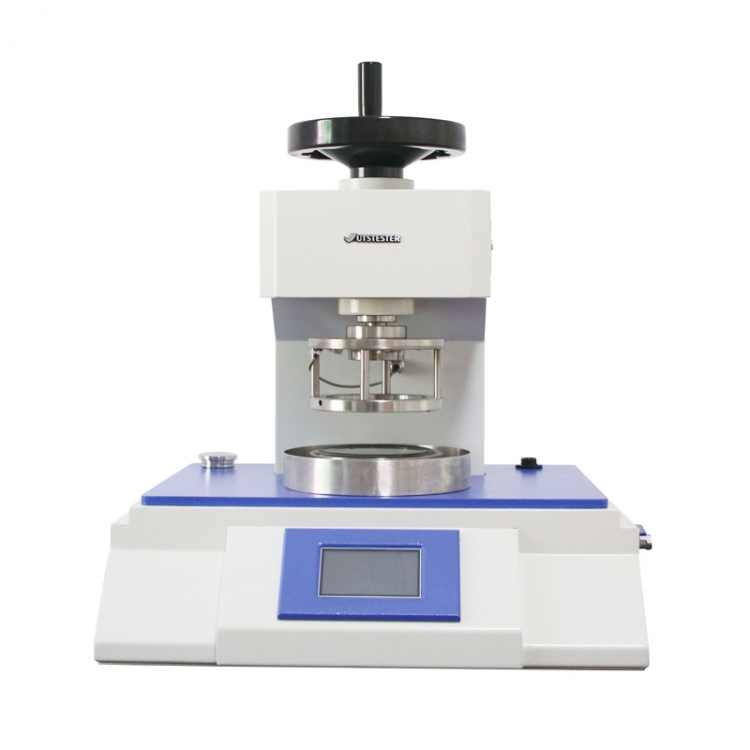

Digital Hydrostatic Head Tester M023C

The digital hydrostatic head tester M023C is mainly used to test the waterproof performance of waterproof fabrics such as coated fabrics, tent fabrics, tarpaulins, rain-proof fabrics and non-woven materials.

Features

1.Color touch screen control panel, Built-in English and Chinese menu for ease operation.

2.Adding pressure rate adjustable, 1-100 KPa/min

3.Adopt improt high precision pressure sensor, automatic overload protection, pressure control • Adopt dynamic feedback adjustment to avoid over laod.

4.Seven test units can be selected: Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.

5.Auto stop machine and record test value once sample burst during testing.

6.Working modes: Supercharge method, Constant pressure and time, Constant pressure and timing, Leaking method, flexing test.

7.Test data can be saved 30*20 times, equipped with micro-printer to print out data directly.

8.LED lighting of sample area

9.100 cm² test head included

10.Quick Test feature saves technician time

Standards

AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, ERT 160-0, ISO 9073-16, JIS 1092 B-b, ASTM D751, EN 343, GB/T 4744, IST 080.4(01), IST 080.6(01), WSP 080.6.R4(12), FZ/T01004,  DIN 53886, ISO 1420

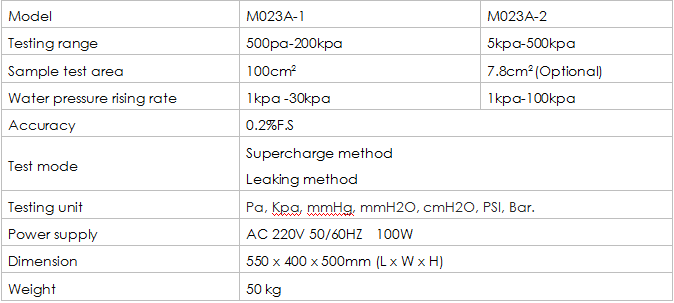

Key Specifications

Applications
