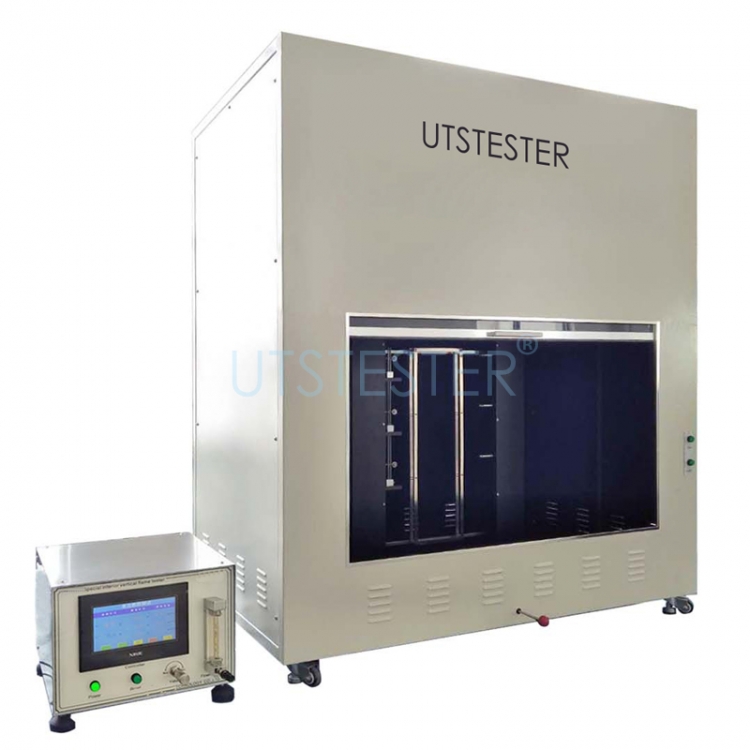

Multifunction Flammability Chamber M017C

Model :
M017C
Brand :
UTSTESTER
Certificate :
CE, ISO 17025, ISO 9001
Lead Time :
3-25 Days
Payment :
TT, L/C
Original Region :
China
Port Of Dispatch :
China Port
Standards :
EN ISO 6940, EN ISO 6941, EN ISO 15025, EN 1101, 1102, EN 71-2, EN 13772, EN 1624, EN 1103, EN 14878, EN 1625, BS EN 532, BS 7837, 5722, 5867-2, 6249.

Inquiry

Overview

Multifunction flammability chamber mainly used to test the flammability property for nightwear.

Test Principle

Mount sample onto the fixture. Burn the sample with specified flame for a certain of time, record the time of burning time and speed, so as to assess its flammability property.

Standards

EN ISO 6940, EN ISO 6941, EN ISO 15025, EN 1101, 1102, EN 71-2, EN 13772, EN 1624, EN 1103, EN 14878, EN 1625, BS EN 532, BS 7837, 5722, 5867-2, 6249.

Features

(1)Switch: Marker thread switch

(2)Test frames: interchangeable test frame with fame stubs and pins

(3)Finishing : Heat resistant finish

(4)Ignition: automatic ignition

(5)Controls :

1.burner to specimen adjustor

2.gas flow regulator

3.burner setting gauges

(6)Data extraction: test report exportation

(7)Gas burners: range of gas burners as accessories to comply with all standards

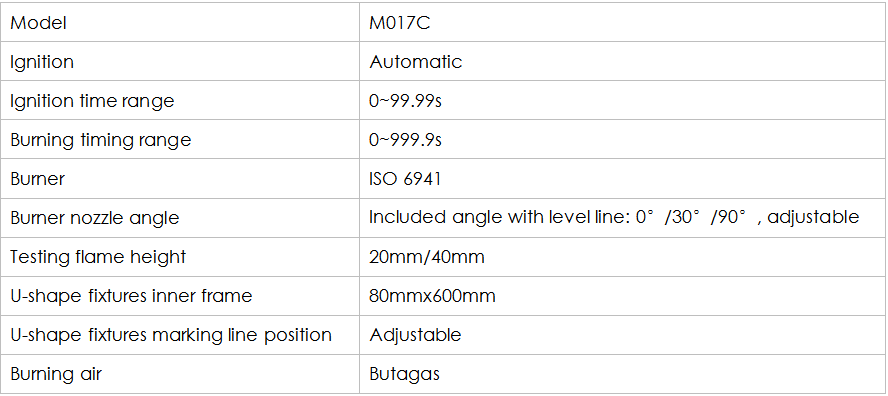

Key Specification

Applications
