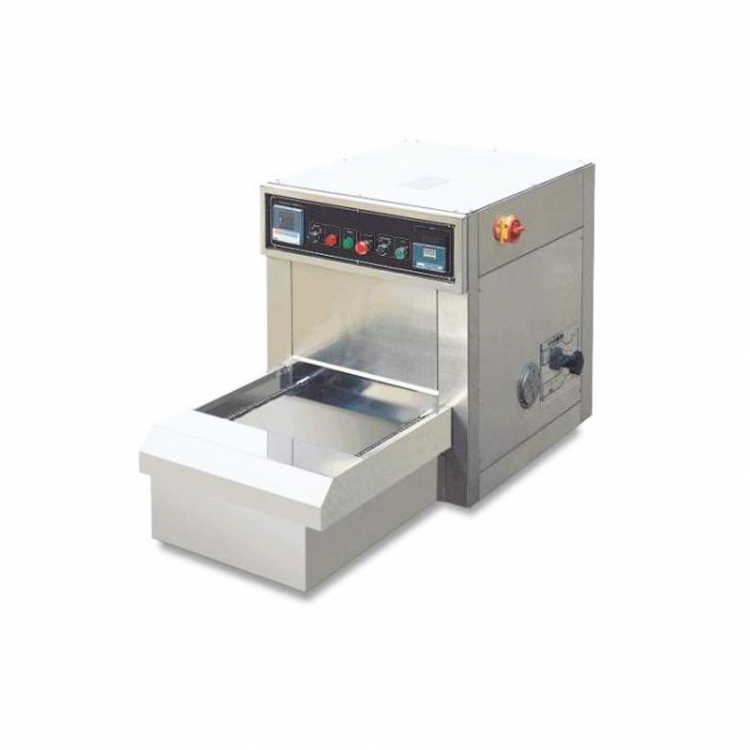

Laboratory Mini Stenter - Horizontal Type D018A-1

Laboratory Mini Stenter - Horizontal Type D018A-1

  • Model :

  • Brand :

  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

  • Port Of Dispatch :

    China Port

D018A-1 Laboratory Mini Stenter without steamer, is applicable for garment, dyeing and finishing, chemical and other industries.

It is used to conduct dry, stereotypia, resin treatment baking, pad dyeing baking and thermal fixation tests. So as to obtain correct resin treatment recipe, test dyeing and finishing color changing situation, as well as verify the test results of medicament. Also can be used to fulfill hand-feel sample plate production to get right color and texture sample plate.

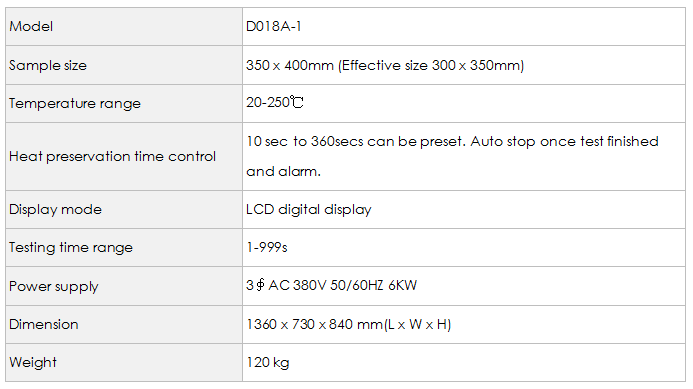

Key Specifications

D018A-1 Laboratory Mini Stenter

Support Services

UTS provide the complete support for the full life of your D018A-1 Laboratory Mini Stenter - Horizontal Type:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

1.Digital display of temperature and time;

2.Settable temperature within room temperature~250℃;

3.Stainless steel SUS 304 construction with heat insulation layer;

4.Advanced motor drive system for delivering fabric samples;

5.Automatic temperature controlling system with the accuracy of ±1%;

6.Four-direction adjustable pin-frame, to mount the samples in tension;

7.Switch for adjustable hot air quantity onto fabric upper and lower surfaces to minimize the temperature difference between fabric upper and lower surfaces;

8.Press the button to feed fabric sample into the drying chamber and fabric sample is automatically transported out of the drying chamber with audible alarm when the set time is due;

9.The machine is able to accurately simulate the actual production conditions, such as dyeing, washing and fastness test.

10.Equipped with new dyeing machine dedicated computer, precision of the heating system, accurate temperature control and time control, help to improve the success rate of samples.

D018A-1 Laboratory Mini Stenter - Horizontal Type is applicable to the determination of:

garment, dyeing and finishing, chemical and other industries.
