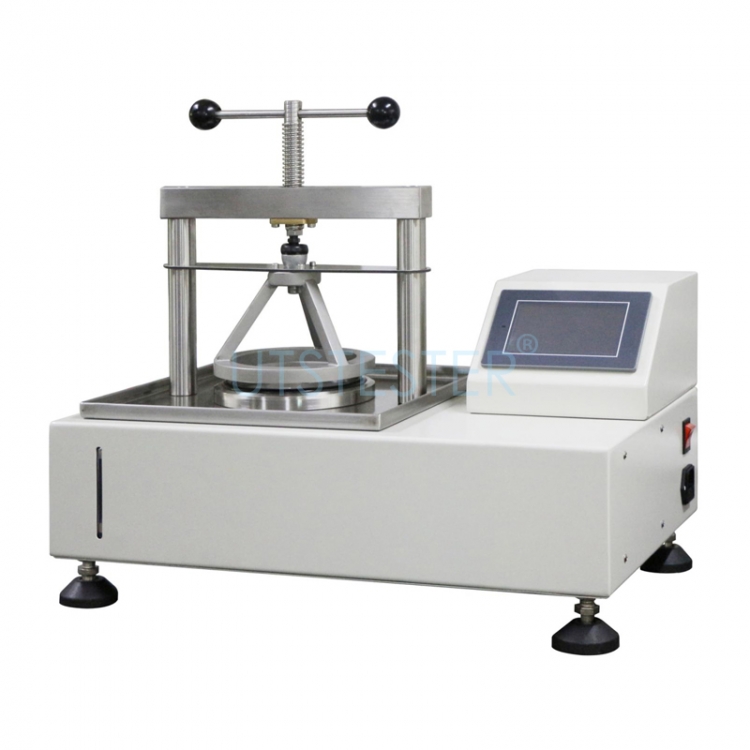

Hydrostatic Head Tester M023D

Hydrostatic head tester used for testing the anti-seepage property of various fabrics (such as canvas, coated cloth, tent cloth, tarpaulin, waterproof clothing cloth and geotextile material, etc.) treated with waterproof.

Features

1, color touch screen control, Chinese and English double choice menu operation, simple and quick operation.

2. Three grades of pressure rate are available: 1KPa/min, 6KPa/min and 10KPa/min.

3, the use of imported high-precision pressure sensor, sensor automatic overload protection, pressure control using dynamic feedback regulation, effectively prevent pressure overshoot.

4. Six test units can be switched freely: Pa, Kpa, mmHg, cmH2O, PSI and Bar.

5. It can automatically identify and record the maximum value of sample rupture during the experiment.

6. Test data can be saved for 30*20 times.

Standards

GB/T 4744, AATCC 127

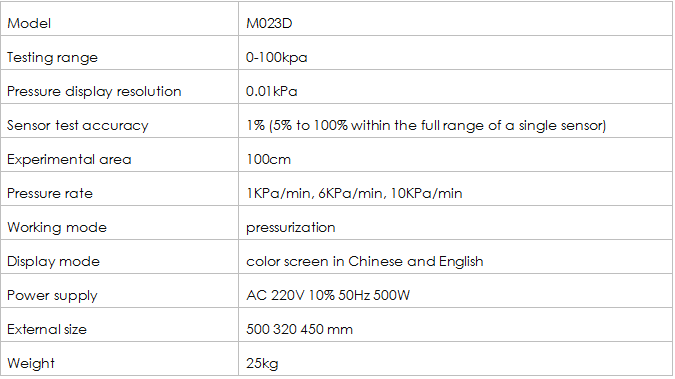

Key Specifications

Applications

It is used for testing the anti-seepage property of various fabrics (such as canvas, coated cloth, tent cloth, tarpaulin, waterproof clothing cloth and geotextile material, etc.)
