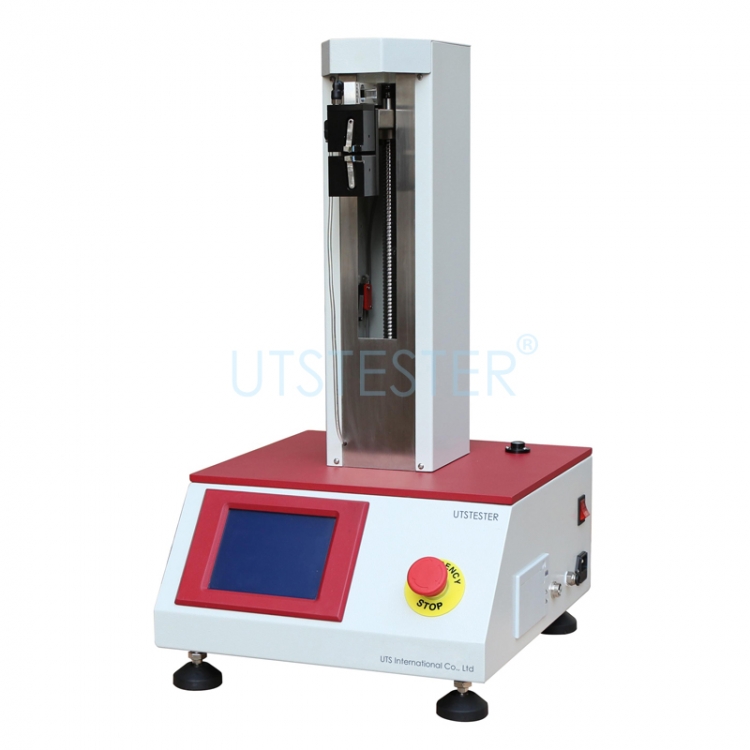

Electronic Single Fiber Strength Tester F003C

Electronic single fiber strength tester is used to measure the breaking strength, breaking elongation, constant elongation load, constant load elongation, creep and other performance indexes of various materials such as single fiber, metal wire, hair and carbon fiber.

Features

1. Touch LCD, Chinese and English menu, simple and easy to understand interface, simple and intuitive operation.

2. The 32-bit cortex-m3 microprocessor is adopted, with strong anti-interference performance and fast data processing.

3. High speed AD, high sampling frequency and high test accuracy.

4. Automatic display, analysis and storage of test data;The instrument and thermal printer can print the report directly.

5, Manual clamping with economic cost and reliable performance.

6. The transmission mechanism adopts ball screw set, synchronous belt, synchronous wheel, etc., with stable operation, high precision and low noise.

7. Support online work with professional computer software.

8. Software analysis functions: breaking point, breaking point, stress point, yield point, initial modulus, elastic deformation, plastic deformation, etc.

Standards

GB/T14337, 9997, 13835.5, ISO 5079, 11566, ASTM D 3822, BS 4029

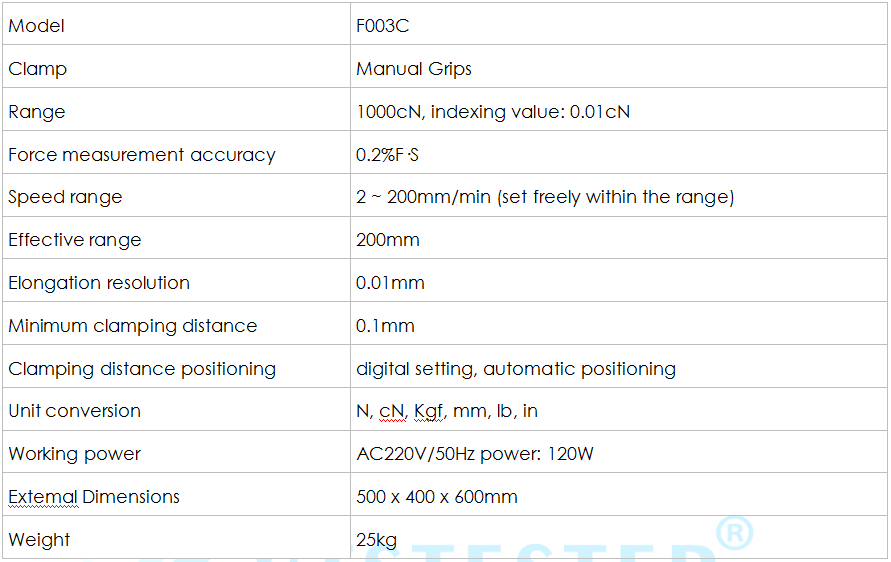

Key Specifications

Applications

It is apply to single fiber, metal wire, hair and carbon fiber.
