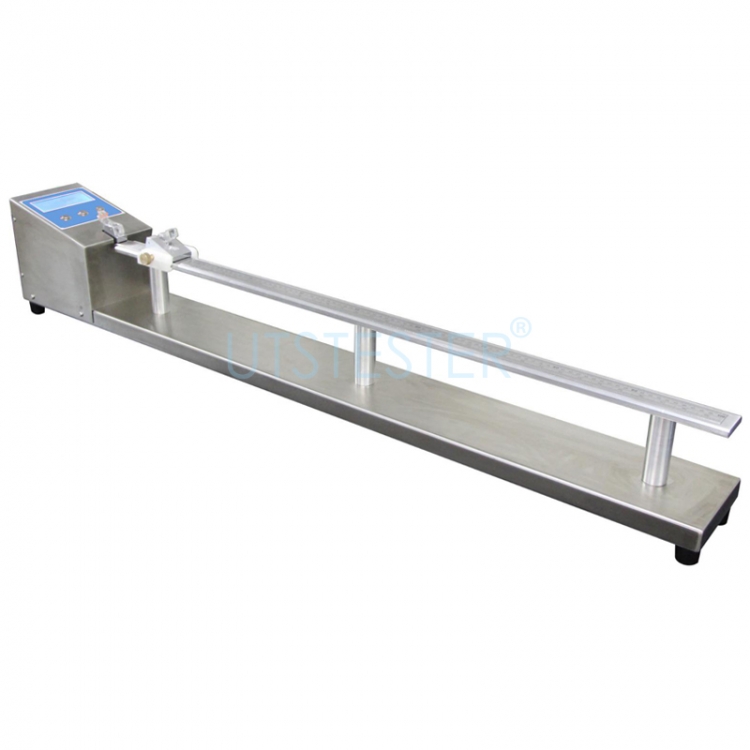

Digital Yarn Crimp Tester Y016

Digital Yarn Crimp Tester Y016

  • Model :

    Y016
  • Brand :

    UTSTESTER
  • Certificate :

    CE, ISO 17025, ISO 9001
  • Partner :

    UL,SGS,etc
  • Lead Time :

    3-25 Days
  • Payment :

    TT, L/C
  • Original Region :

    China
  • Port Of Dispatch :

    China Port
  • Standards :

    ASTM D3883, GB/T 29256.3, ISO 7211-5, ISO 7211-3
Inquiry

Application

• To measure the crimp degree of yarn in fabric.

• Take-up of yarn in fabric.

• Calculation of the count of yarns removed from fabrics

• Estimation of yarn usage in the production of fabrics


Working Principle

The thread straightening and measuring device, with 2 grips, thedistance

between two grips are adjustable, so as to apply therequired tension

on yarn.


Features

1. The instrument adopts microcomputer control measuring force, and

the large screen liquid crystal displays the force value directly, the result

is accurate and the reaction speed is fast.

2. The calibration procedure is advanced, and it is not necessary for the

operator to make adjustments to complete the accurate calibration;

3. The machine is all-stainless steel body, beautiful and corrosion resistant;

4. The damping adjustable on the right mobile platform, support to adjust

the damping size according to your needs;


Standards

ASTM D3883, GB/T 29256.3, ISO 7211-5, ISO 7211-3

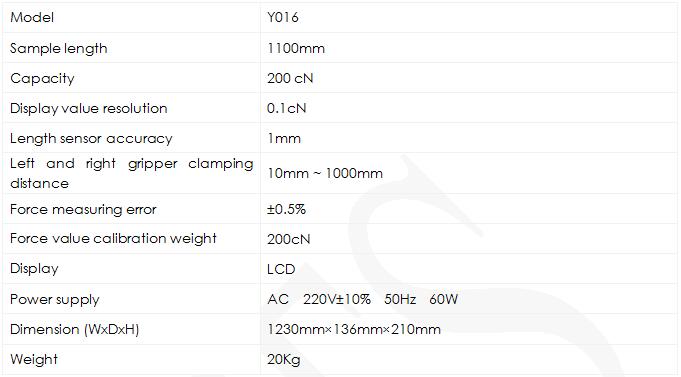

Key Specifications

Digital Yarn Crimp Tester Y016

Application

Digital Yarn Crimp Tester Y016
