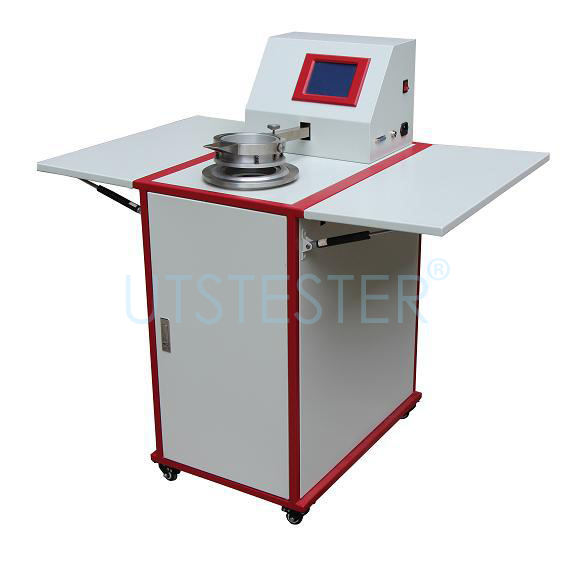

Fabric Air Permeability Tester

1. Basic knowledge of permeability

Air permeates the fabric through its ability to make it breathable. It directly affects the wearing properties of the fabric. If the fabric that uses summer needs to have handed good air permeability, and the garment of winter air permeability should be lesser, in order to assure the dress has good wind prevention performance, prevent quantity of heat to send out. Air permeability is of great significance to fabric used in defense and industry. For example, the parachute requires high air permeability, and the tarpaulin should be firm and durable in addition to good air permeability. Fabric permeability is determined by the number and size of interstitial and interstitial interstitial Spaces of the fabric, that is, the warp and weft density, the warp and weft yarn characteristics, the twist of the yarn, and other factors such as fiber properties, yarn structure, fabric thickness and volume weight.

2. Test principle of permeability

Under the specified pressure difference, the air flow rate through a given area of the sample is measured vertically within a certain time and the air permeability is calculated. The flow rate can be directly measured, or calculated by measuring the pressure difference between the two sides of the flow aperture.

3. Definition of permeability

Significance and characteristics of textile permeability test: permeability refers to the properties of heat, moisture (liquid phase, gas phase) and air (air flow) passing through the fabric. The rate of vertical flow passing through the sample under the specified sample area, pressure drop and time is expressed as the air permeability.

4. Fabric permeability

Natural fiber and protein fiber fabrics such as cotton, linen and wool have better air permeability than synthetic fiber fabrics such as nylon and polyester. In general, the order of fabric permeability is: perforated fabric > satin fabric > twill fabric > plain fabric; The air permeability of fabric increases with the length of fabric floating.

5. Changes in permeability

Liquid ammonia treatment can improve the air permeability of the fabric. After washing the fabric for 5 times, the air permeability changes obviously, and then gradually becomes flat. After washing for 30 times, the air permeability of the fabric tends to increase. The air permeability of baked fabrics increased after baking.
