Martindale abrasion and pilling tester is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.
4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.
Standards
GB/T4802.2-2008, GB/T13775, GB/T21196.1, GB/T21196.2, GB/T21196.3, GB/T21196.4, FZ/T20020, ISO12945.2, 12947; ASTMD4966, 4970, IWS TM112.
Features
1.Touch screen controller with individual station counters.
2.Light weight motion plate and storage rack.
3.Multiple speeds can be used for custom tests.
4.4, 6, 8, or 9 position base uses the least bench space of large martindales.
5.Available in a small four-position base.
6.Test head choices include standard abrasion, pilling.
7.Motion according to 24mm and 60mm Lissajous track.
8.Alarm after test finished.

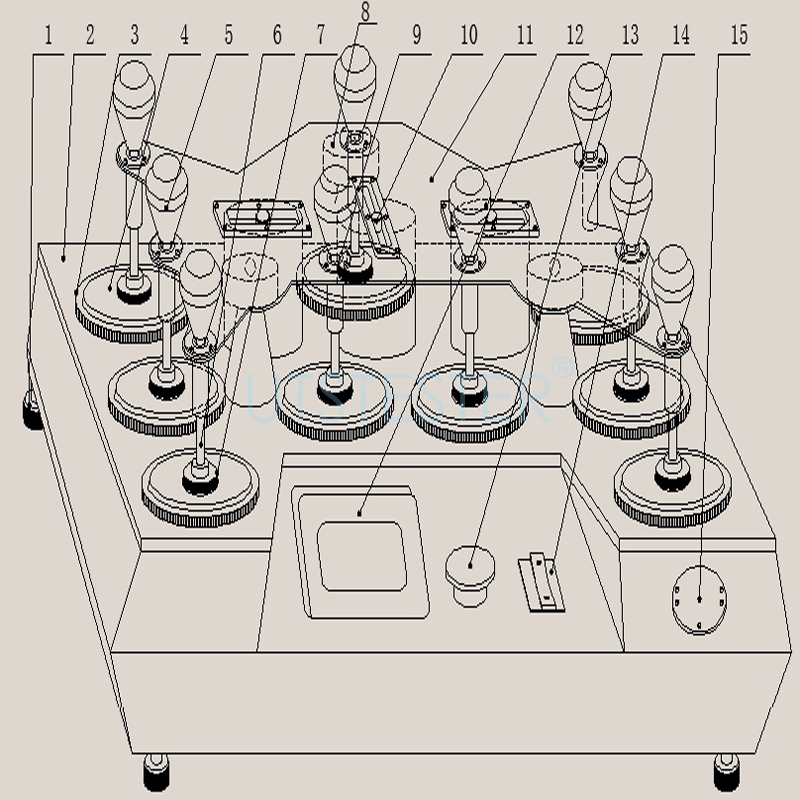

Structure
1. Foot margin 2. Frame 3 .Holder 4.Testing plate 5. Loads 6.Connecting rod 7.Abrasion head 8. Pallet ball 9. Guide slot board 10.Guidepost 11. Guide plate 12.Touch Screen 13.Emergency switch 14.Power switch 15.Sample clamp
