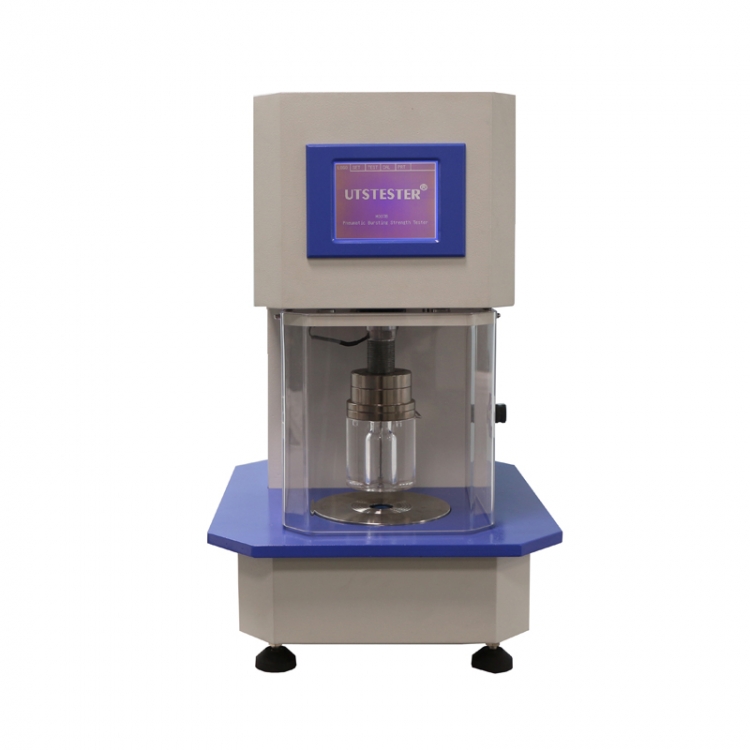

M007B Pneumatic Burst Strength Tester is to adopts pneumatic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

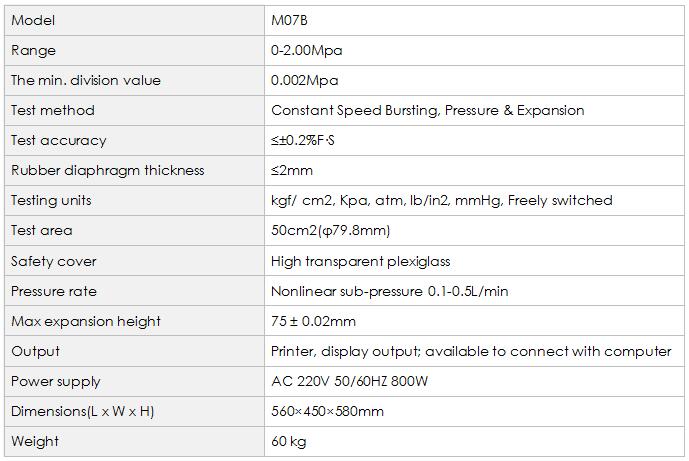

Key Parameters
Principle
Clamp sample on the extensible diaphragm via round sample holder. Conduct air pressure underneath diaphragm to make diaphragm and sample expand. Under constant speed and adding pressure until sample burst, so as to measure the burst strength and burst expansion.
Standards
ISO 13938-2, GB / T 7742, FZ/T 60019, ISO 2960, ASTM D 3786, etc
1.Adopts pneumatic method accorded with international standards.
2.Microprocessor control, auto burst test, auto calibration and data processed. Test results will be display via test report
3.Color touch screen interface with English and Chinese menu operation. Support online communication.
4.Burst pressure up to 1500KPA(15Bar or 200psi)
5.Burst expansion up to 70mm
6.Test area equipped with lighting system
7.Various test area optional and easy for switch.
M007B Pneumatic Burst Strength Tester is applicable to the determination of:
various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.
