Test Method

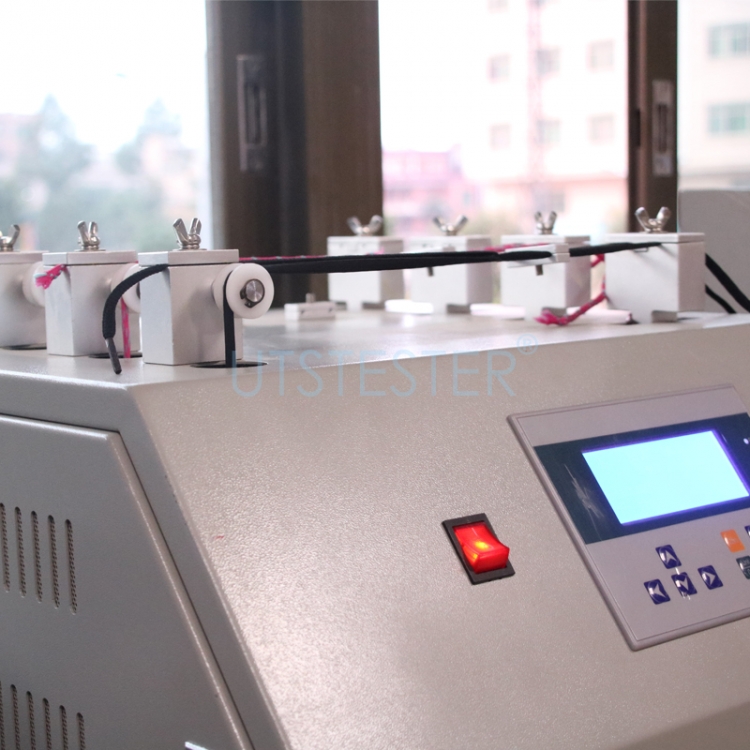

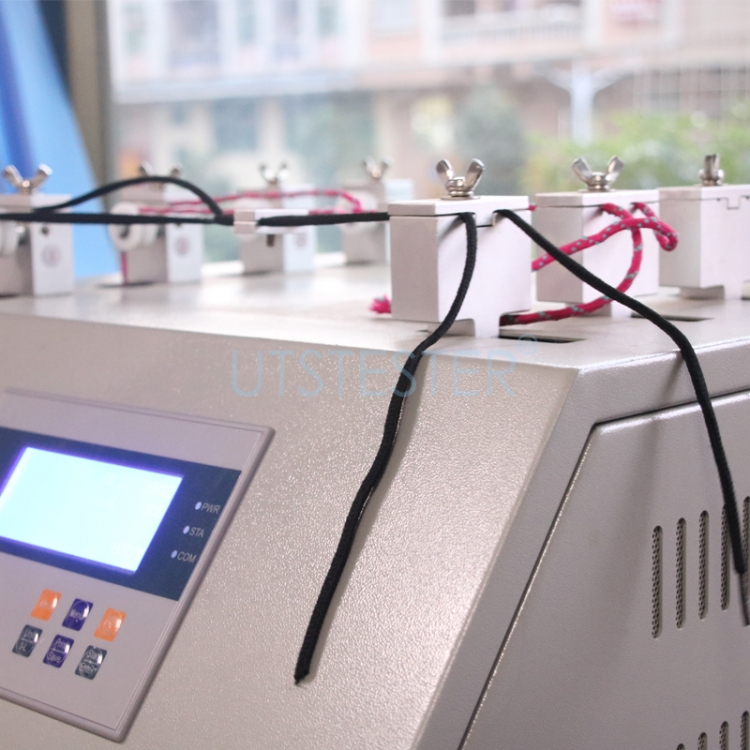

Take two shoelaces cross reciprocally. Fix the both ends of one shoelace onto the movable fixture which is able to do reciprocating linear motion. The other piece of shoelace, fix one end onto corresponding fixture, the other end is connected to a weight through the pulley. Two reciprocally crossing shoelaces rub against each other via movable fixtures’ reciprocating motion. Interval time can be set. When preset test times reached, machine stop working automatically. Interval time reaches, machine continue to work. In such reciprocal work until reaches preset test times reached or sample break, counter stop to counting, so as to be able to test sample resistance to abrasion property.
Standards
SATRA TM154 SATRA PM154 DIN-4843 QB/T 2226 GB/T 3903.36 ISO 22774
H047 Shoelace Rubbing Tester is applicable to the determination of:
various shoelace which is knitted from cotton, flax and chemical fiber materials.
