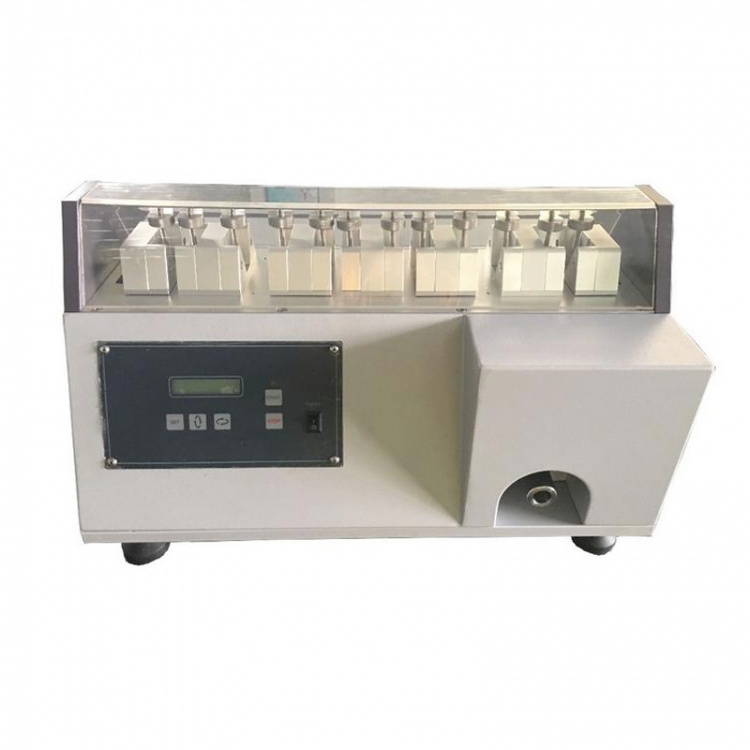

Vamp Material Flexing Tester H049A

H049A Upper and Vamp Material Flexing Tester is to determine flexing resistance or physical damage for all of vamp soft materials including leather, clothing and upholstery coverings. It also can be used to test seam construction during flexing.

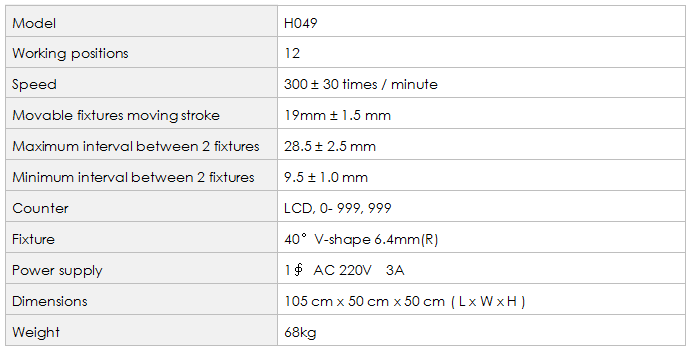

Key Parameters

Support Services

UTS provide the complete support for the full life of your H049A Upper and Vamp Material Flexing Tester:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Related Products

http://www.utstesters.com/shoe-material-heat-resistance-tester-h032_p54.html

http://www.utstesters.com/safety-shoes-impact-tester-h028_p53.html

Test Principle

Simulating vamp flexing state during person wear shoes. Fix samples on the V shape of fixtures and fixtures do relative motion to make two fixtures close to each other and samples flex. During testing, fixture do uniform motion, samples are flexed repeatedly, evaluate sample breakage or desalination phenomenon.

Standards

SATRA PM25  GB/T 20991 6.5.2  GB/T 20991 6.5.2

ISO 20344   ISO-4643   ISO 5423  ISO 22288

H049A Upper and Vamp Material Flexing Tester is applicable to the determination of:

all of vamp soft materials including leather, clothing and upholstery coverings.
