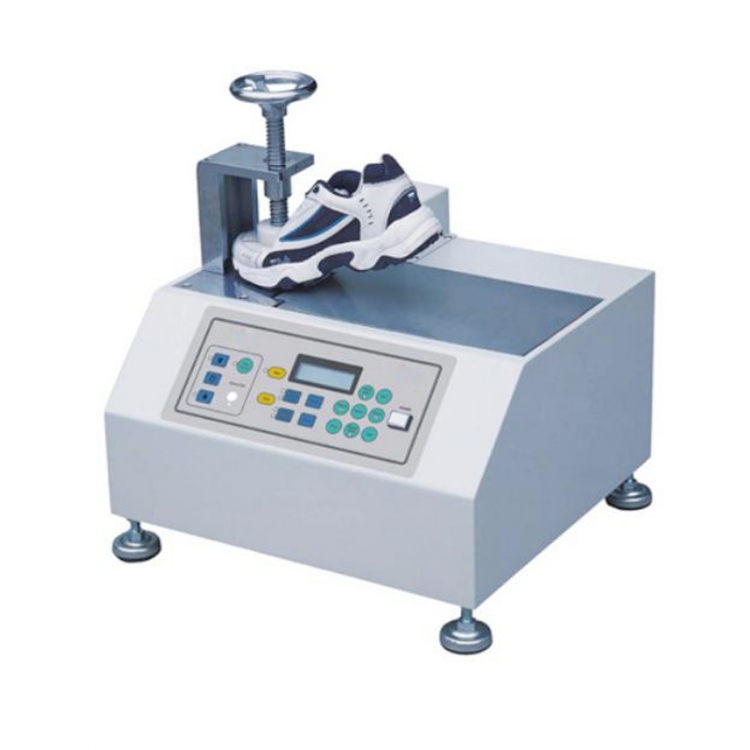

Shoes Stiffness Tester H012

H012 Shoe Flexing Tester is to determine resistance to flex property for finished shoes.

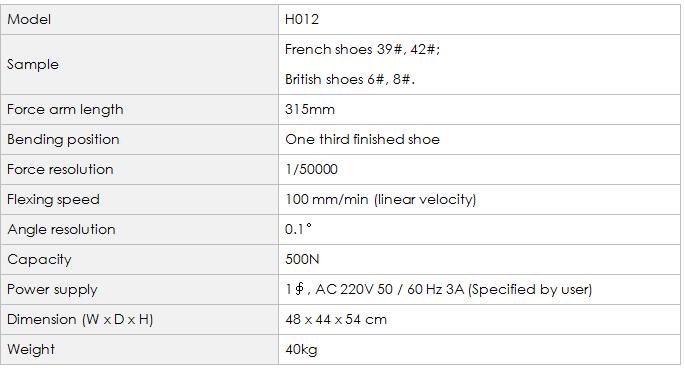

Key Specifications

Test Principle

Test the required force when sample flex to the specified angle or the angle when reaches the specified force, so as to determine the resistance of shoes to flex property.

Standards

ISO-20344  ISO 17707-2005  GB/T20991-2007  ISO 20344:2011  QB 2885-2007

1. Testing times can be set on the panel, real impact times can be displayed as well.

2. With memory function. When haven’t reached preset testing times, if stop the testing manually, the present testing times will be saved until manually zero the testing times or continue to test. If switch off machine and restart the machine, real test times will be cleaned and presetting times will be the times set last time.

3. Machine stop automatically when test times completed. And counter stop counting.

4. Easy operation: Easy understandable operational process.

H012 Shoe Flexing Tester is applicable to the determination of:

all kinds of finished shoes (France shoe Size #39, #42,British shoe Size #6,Size #8).
.
