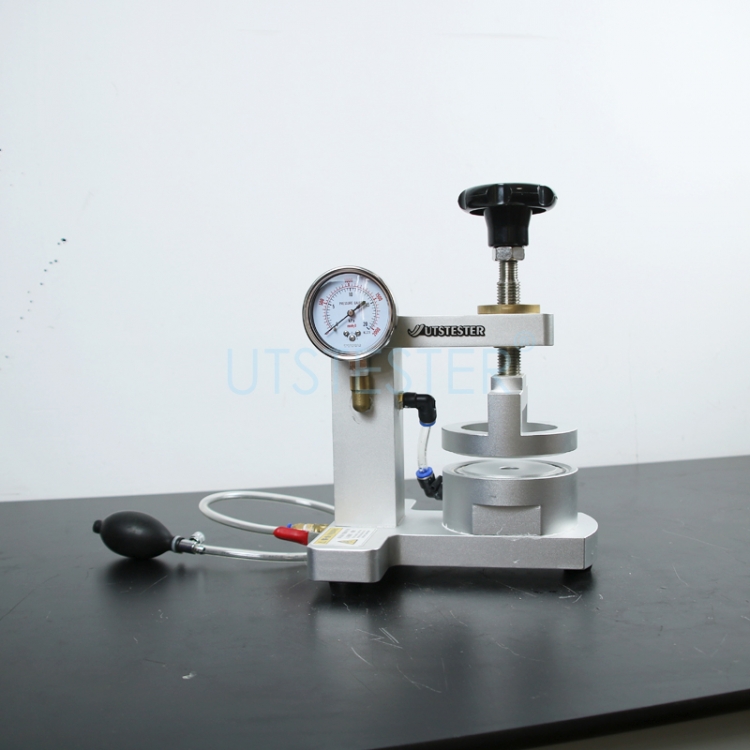

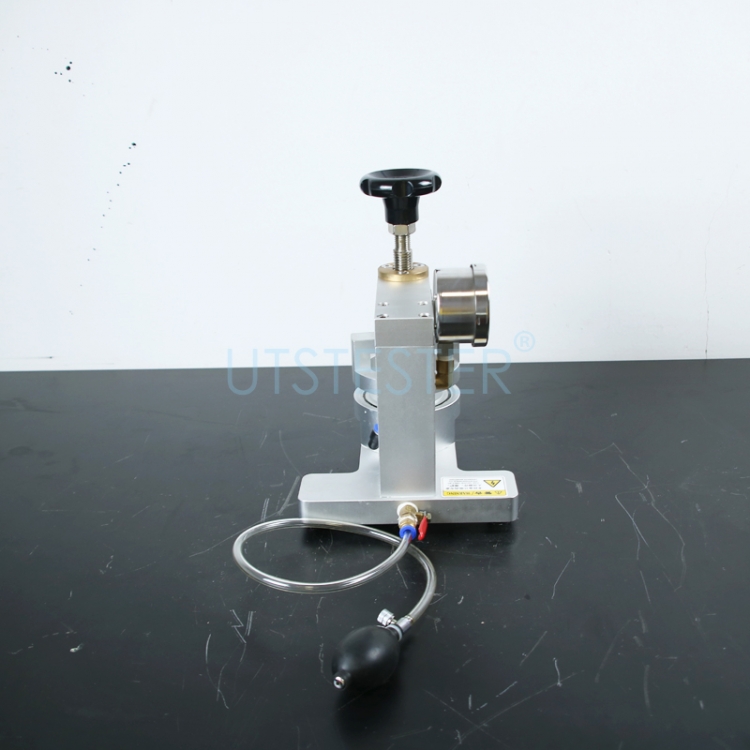

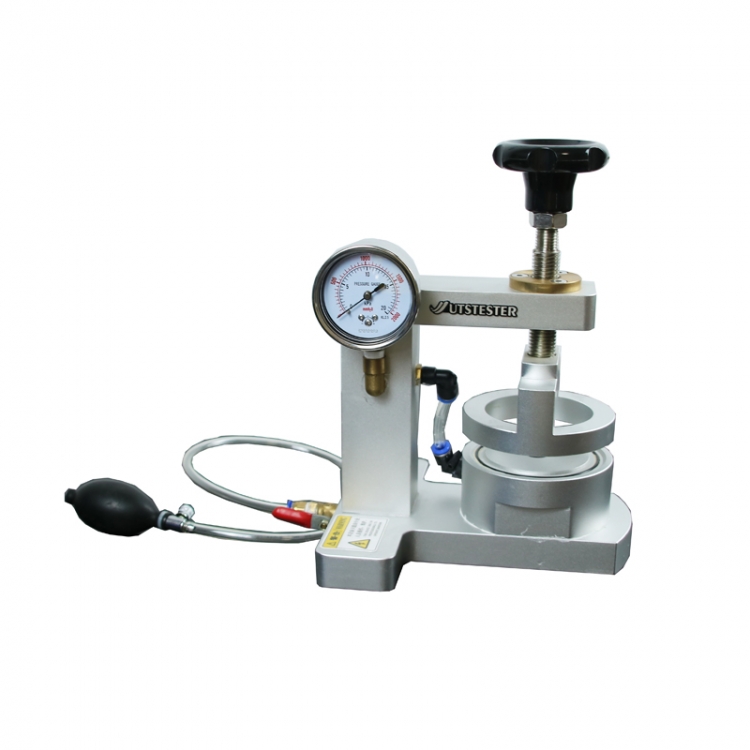

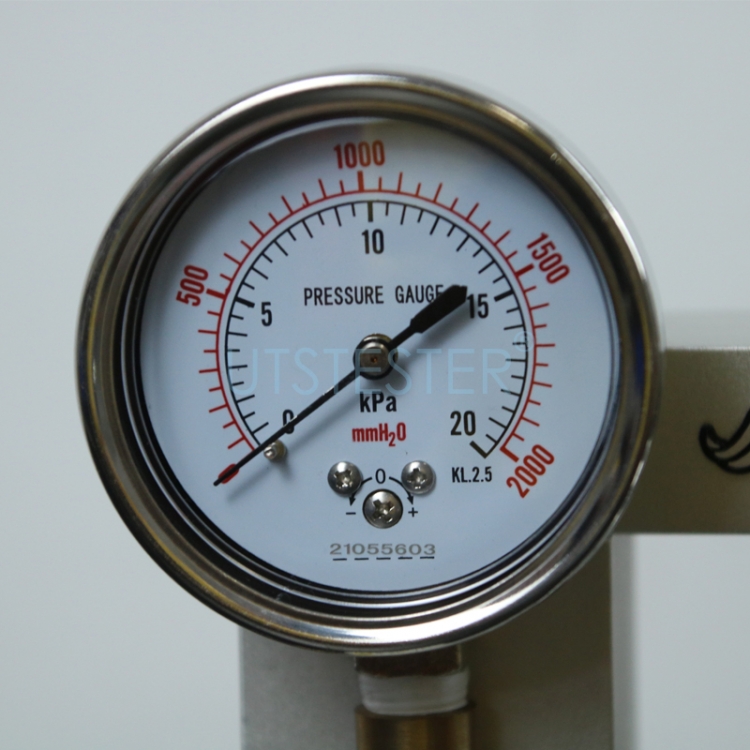

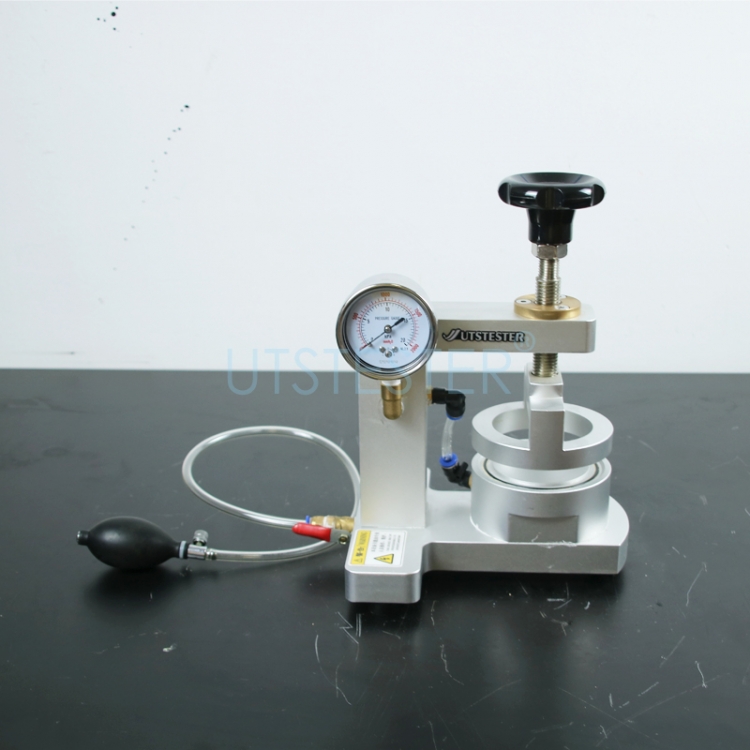

The machine is used to test the water pressure of waterproof suit series, raincoat series, tent series, waterproof bag series, waterproof glove series and other products when adding certain pressure. Through the pressure gauge, we can know the pressure of the tested object and whether the tested object is qualified under this pressure.
Standards
GB4744-84, ISO -811, GB4706.8-2008-21.110.2
Key Specifications
Model
|
M023E
|
Measuring scope
|
plastic bags, cold clothing, tents, raincoats, cloth, etc
|
Technical parameters
|
the samples are placed horizontally and the samples are under pressure
|
Pressure area
|
55cm2, d=80.00mm
|
Water column height
|
0-10000mmh2O (more than 10000mmh2O shall be customized)
|
Rising speed
|
10± 3mmh2O (standard rate) 60± 20mmh2O
|
Standard rate
|
100±30 mmh2O (increase rate)
|
Psychic sensitivity
|
1mmh2O, maximum display value 9999.9mmh2O
|
Machine size
|
280×200×300mm
|
Machine weight
|
5.5kg
|

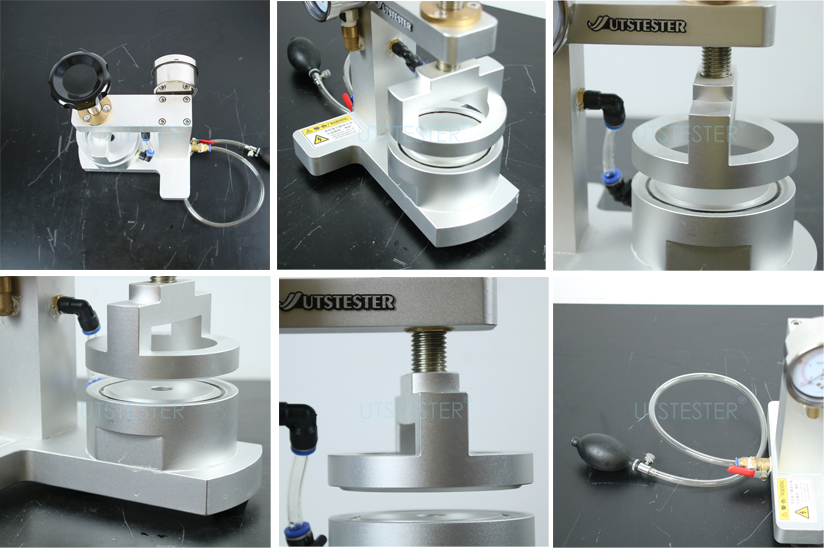

Demonstration
