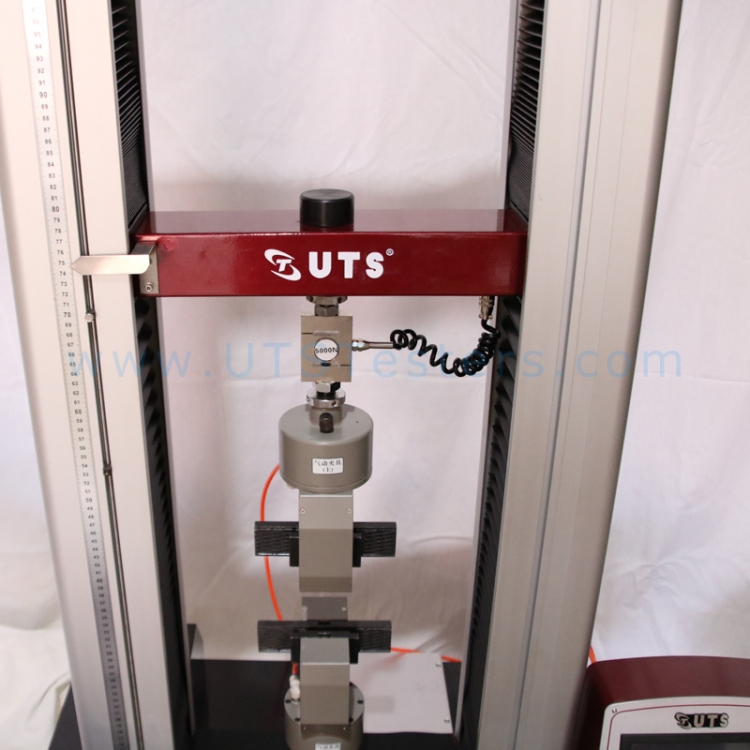

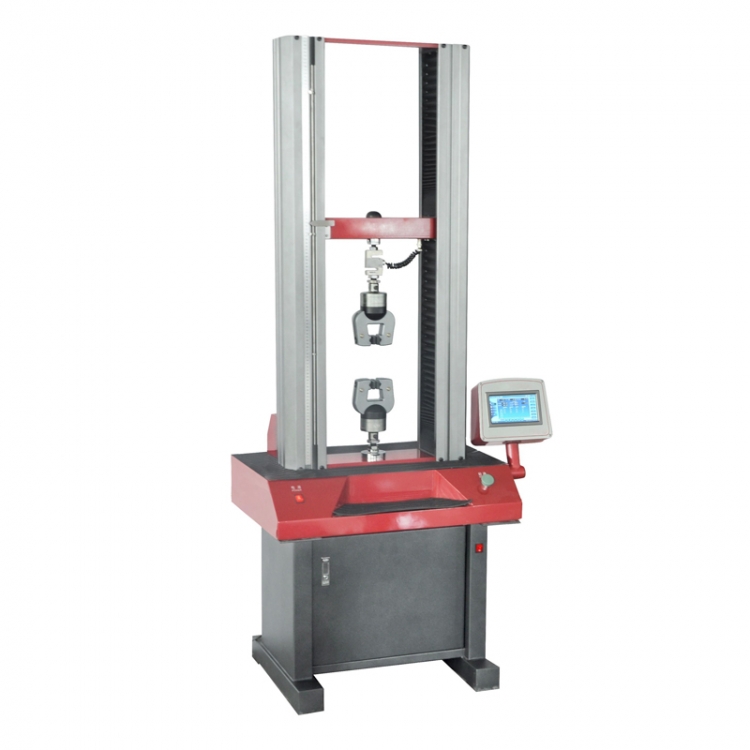

Dual Column Universal Testing Machine M001A

UTS M001A Universal testing machine is the instrument with high grade configuration, full function, high precision, stable and reliable performance

in domestic textile industry. Widely used in yarn, fabric, dyeing, textile, shell fabric, apparel, zipper, leather, non-woven, rubber, plastics, metal,

composites, nylon line, geotechnical materials, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, aviation,

petrifaction, electrician, vehicle, etc. To do tensile, break, tear, burst, peel, seam slippage, flexing, creep, compression, bend, shear, bonding strength

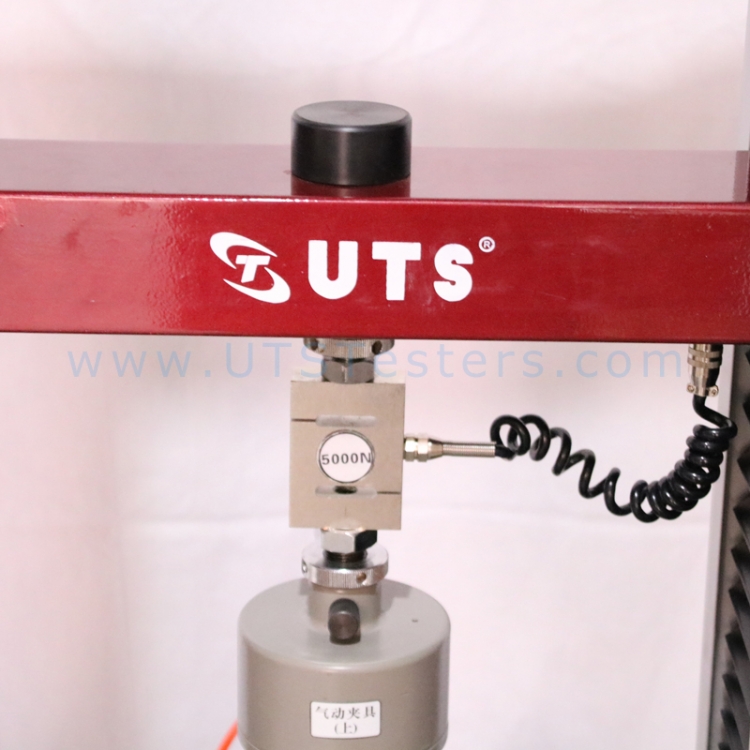

test. Capacities for this model ranges from low-load forces of 10N up to high capacity 5KN with 800 mm stoke.

Key Specifications

1. Adopts 7 Inch color touch screen display with Chinese and English operational menu.

2. Adopts STMicroelectronics ST series 32 bits singlechip, The U.S.A AD brand 16 bits A/D converter control.

3. Panasonic AC servo driver and motor(vector control) equipped, with short response time for motor and without velocity overshoot and uneven speed.

4. Adopts Germany Rexroth brand ball screw and high precision guide rod transmission, with long service time, low noise and slight vibration.

5. Equipped with imported encoder to control instrument’s location and elongation.

6. Special aluminum frame, whole machine shell processed with auto technology metal  stoving varnish, to make complete instrument much more massiness and elegance.

7. Support bilateral control of mainframe and computer.

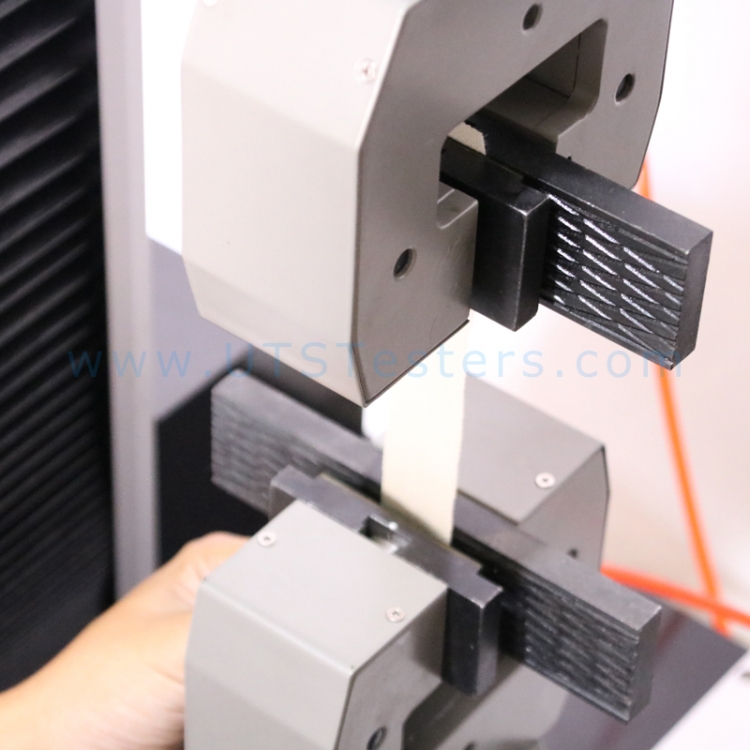

8. Equipped with pneumatic grips, clip available for change based on customized testing materials.

9. Online software support with Windows operational system.

10. Pre-tension can be digital set on software.

11. Interval length can be set and auto location.

12. Protection device: Mechanical switch protection, up and down limit stroke and overload protection, automatic protection of overvoltage, overcurrent, overheat, undervoltage, undercurrent and electric leakage, emergency switch manual protection.

13. Tear, peeling testing curve peak value can be selected.

14. Force value calibration: digital code calibration(authorization code), which is convenient for instrument inspection and accuracy control.

15. Whole instrument’s circuit with standard modular design, which is convenient for maintenance and upgrade.

16. Built-in 17 testing methods and testing methods program can be customized.

M001A Tensile strength tester is applicable to the determination of:
