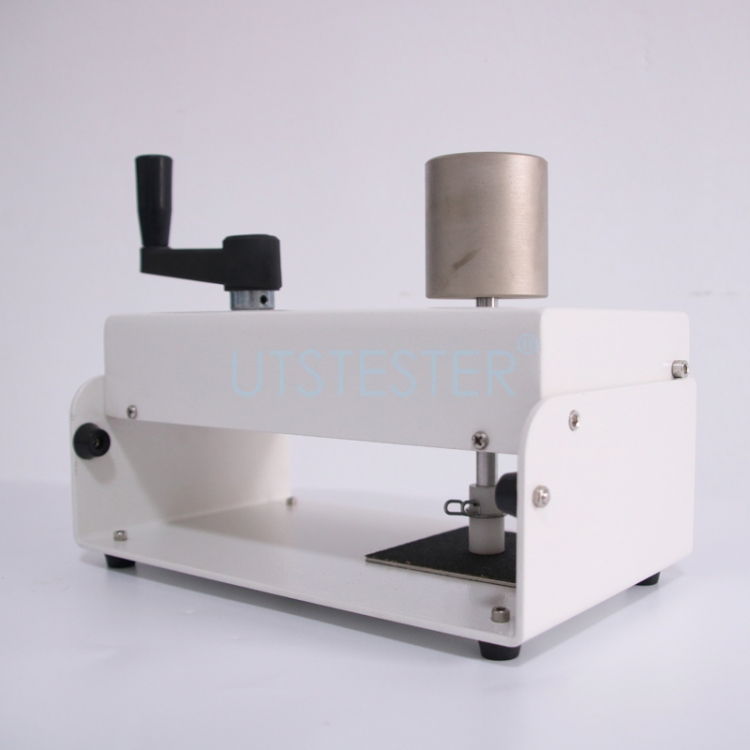

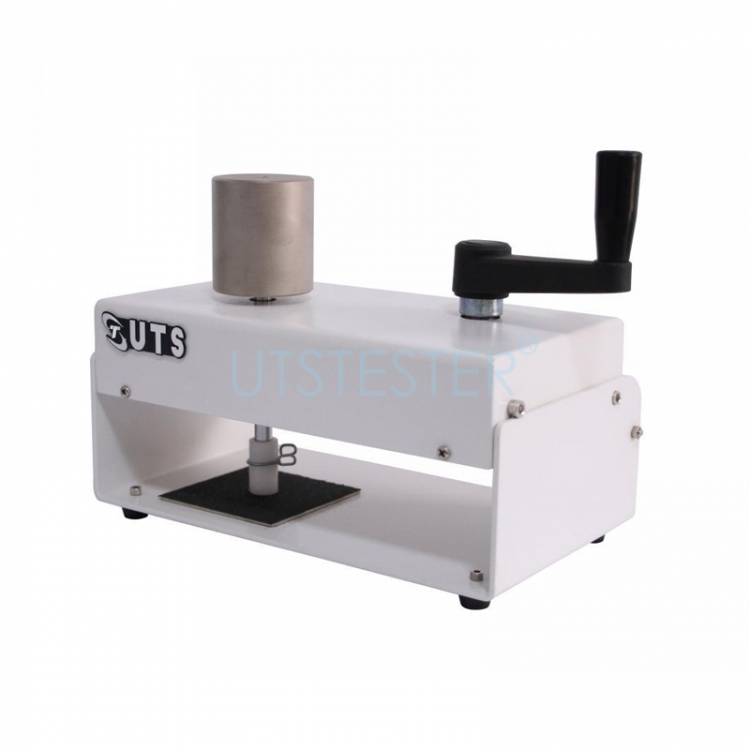

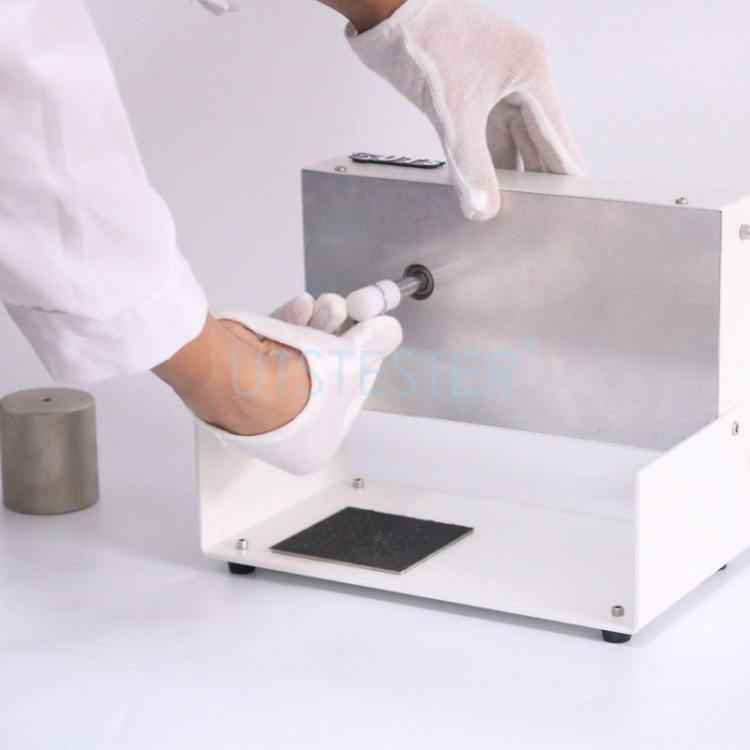

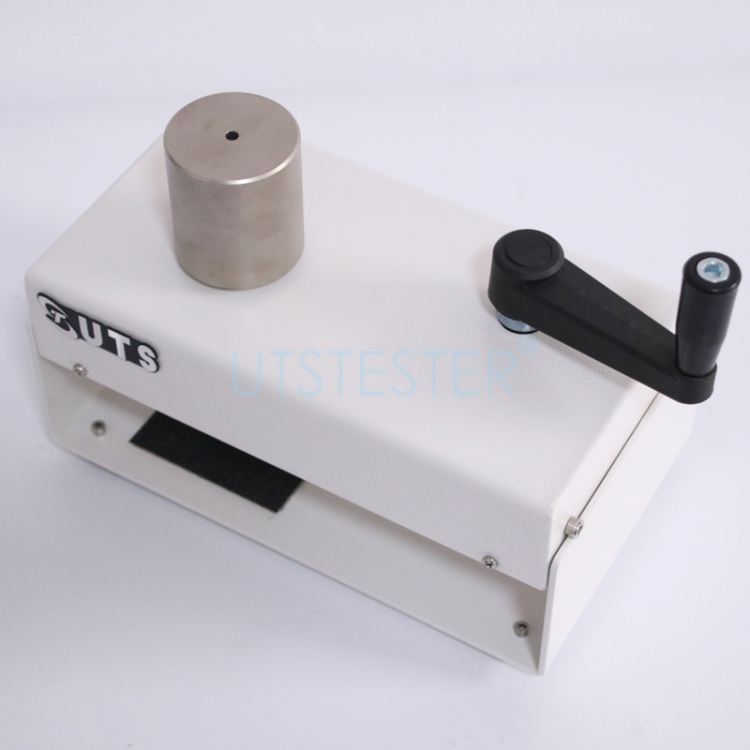

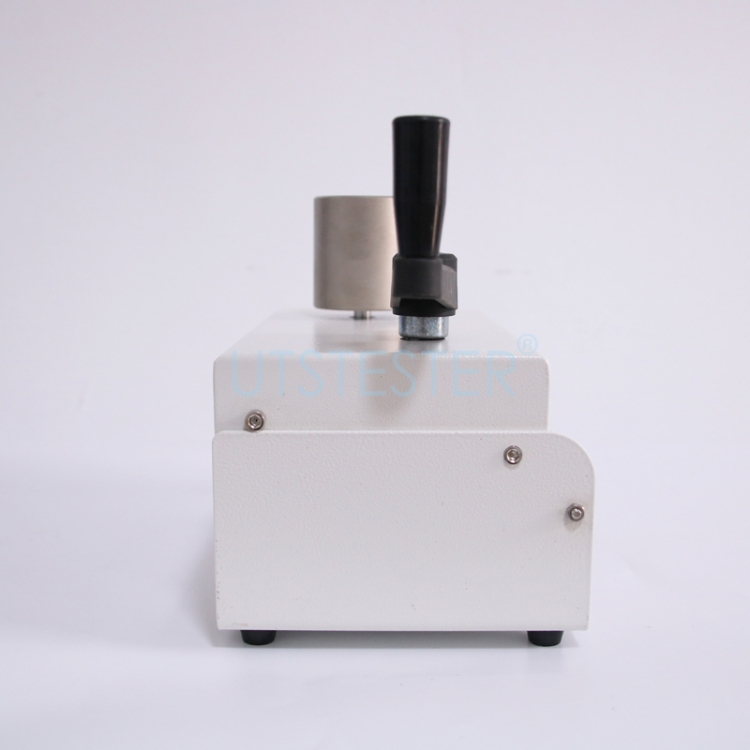

D005A Manual AATCC Rotary Vertical Crockmeter is to determine the surface colorfastness to dry or wet rubbing
for colored yarn and textiles made from all fibers in the form of yarn or fabric, particularly for the printing textiles with
very limit size so that can not be rubbed by standard AATCC Crockmeter.

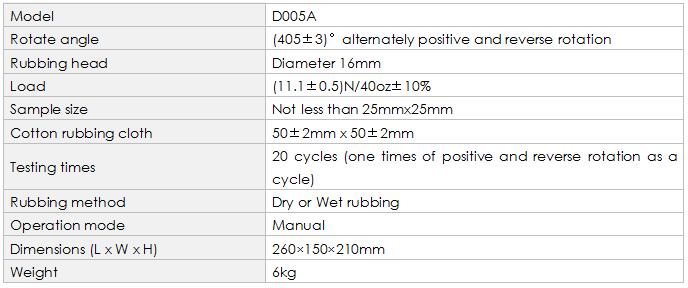

Key Parameters
Test Principle
Applies 1134 grams of pressure on a 16mm finger and rotate 1.125 turns clockwise then anti-clockwise.
The operating handle in spring steels is only turned in one direction.
Standards
ISO 105X16 AATCC 116
D005 Manual AATCC Rotary Vertical Crockmeter is applicable to the determination of:
dry or wet rubbing for colored yarn and textiles made from all fibers in the form of yarn or fabric.
