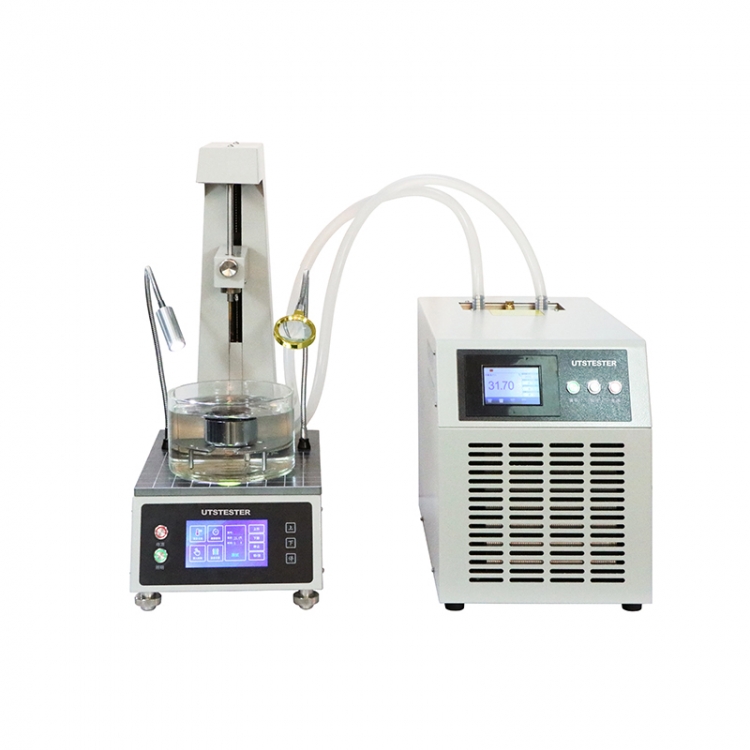

The instrument is suitable to determine the penetration of highway bitumen, modified asphalt, as well as liquid petroleum asphalt or residue of emulsified asphalt after evaporation.
Standard
GB/T 4509; 0604; JTG E20-2011
Features
1. Measurement accuracy of the instrument can reach to 0.6 penetrations.
2. New type penetrometer detection unit, and the test repeatability is stable.
3. It adopts high resolution capacitance touch screen, the information can be clearly displayed.
4. Special "Computer Drawing Software + Data Accurate Reading Technology", it can automatically draw and print the nomogram of asphalt penetration relationship.
5. It adopts new type lifting device.
Key Parameters
ITEM
|
COMMENT
|
Model
|
UTS-2801H
|
Measurement range
|
0 penetration~600 penetrations
|
Resolution
|
0.1 penetration
|
Timing range
|
0s~60 s, and the error is less than ±0.1 s
|
Data saved
|
50 groups
|
Standard needle
|
50mm,2.5±0.05 g
|
Sample container
|
Φ55×H35
|
Standard weight
|
50g
|
Lifting device
|
automatic lifting
|
Power supply
|
AC(220±10%)V, 50Hz
|
Power consumption
|
200W
|
Dimension ( L x W x H )
|
260mm×400mm×600mm
|
Weight
|
15kg
|
